330105611 Rear Axle Housing Assembly XCMG XDE130 Dump Truck Parts

330105611 Rear Axle Housing Assembly for XCMG XDE130

The 330105611 Rear Axle Housing Assembly is one of the most critical structural and drivetrain components engineered for the XCMG XDE130 Electric Driving Dump Truck. Unlike conventional mechanical axles, this massive housing is specifically designed to enclose and protect the dual electric traction motors and planetary final drives that propel the 130-ton truck.

In addition to housing the drivetrain, this assembly serves as the primary suspension mounting point. It features the robust Tripod Support (A-Frame), heavy-duty Tie Rod, and massive GEG-series Oscillating Bearings (spherical plain bearings) that allow the rear axle to pivot independently of the chassis, keeping the dual tires planted firmly on uneven mining terrain. We supply the complete 330105611 master assembly, as well as individual wear parts such as bearings, pins, and shims to support targeted overhauls. Genuine XCMG OEM parts and premium aftermarket alternatives are available for global dispatch.

General Assembly Specifications

330105611 Component Parts List (Master Table)

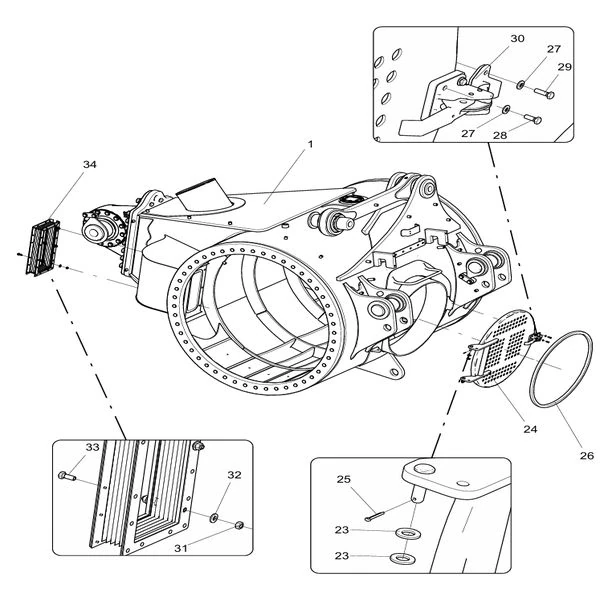

Below is the detailed 34-part breakdown of the complete rear axle housing assembly according to the official XCMG XDE130 parts catalog. You can request pricing for the entire system or specify individual major components (such as bearings, structural bolts, or the tie rod):

Features & Benefits of Our XCMG Chassis Components

• Electric Drive Integration: The housing is engineered with two 330100659 Soft Air Ducts specifically designed to route high-volume cooling air directly to the massive electric traction motors, preventing thermal derating during steep ascents.
• Severe-Duty Articulation: The inclusion of heavy-duty GEG160ES-2RS and GEG110ES-2RS Oscillating Bearings (spherical plain bearings) combined with the 330102230 Tie Rod allows the rear axle to pivot independently of the chassis, absorbing shock and keeping tires planted on uneven ground.
• Massive Structural Fastening: Rebuilding this axle requires immense clamping force. This kit provides exactly eighteen Grade 10.9 M36×90 structural bolts (Index 14) and dozens of DIN6796 conical washers to withstand the brutal torsional loads of 130-ton payloads.

Ordering & Logistics Guidelines

1. Select Individual Major Assemblies: Given the massive physical scale and cost of the complete 34-part frame assembly, customers typically order specific sub-assemblies. Please clearly specify if you need the entire chassis backbone, or just individual wear parts (e.g., “Index 13: 800513954 Oscillating Bearing”).
2. Provide Machine Serial Number: Axle housing mounting points, bearing diameters, and traction motor duct routing frequently vary depending on the production year and specific payload configurations. Providing your XCMG XDE130 VIN guarantees 100% correct fitment.
3. Global Heavy Freight Shipping: The main rear axle housing is an immensely heavy cast-iron and welded steel structure. We utilize robust wooden crating, specialized flat-racks, and custom sea-freight routing to ensure safe, damage-free delivery directly to your repair facility or mine site.

Submit your inquiry today detailing the specific items you need from the 330105611 group, along with required quantities and your destination port. Our B2B sales team will provide a detailed commercial quote and freight lead time within 1 business day.
