330104334 Centralized Lubrication Assembly XCMG XDE130 Dump Truck Parts

330104334 Centralized Lubrication Assembly for XCMG XDE130

The 330104334 Centralized Lubrication Assembly is a highly advanced, dual-purpose maintenance hub designed for the XCMG XDE130 Electric Driving Dump Truck. This massive 77-part assembly combines the truck’s Automatic Greasing System (Auto-Lube) with the Ground-Level Fast-Fill Service Center, drastically reducing the labor hours required for daily preventative maintenance.

The auto-lube circuit is powered by an industry-leading Lincoln Hydraulic Grease Pump, which meters and distributes heavy-duty grease through single-line ejectors to every critical pivot pin and bearing on the chassis. Simultaneously, the integrated fast-fill receivers allow pit mechanics to rapidly pump engine oil, coolant, and hydraulic fluid into the truck from the ground, eliminating the need to climb the chassis with hoses. We supply the complete 330104334 master assembly, as well as individual hoses, fittings, and pumps for targeted servicing. Genuine XCMG OEM parts and premium aftermarket alternatives are available for global dispatch.

General Assembly Specifications

330104334 Component Parts List (Master Table)

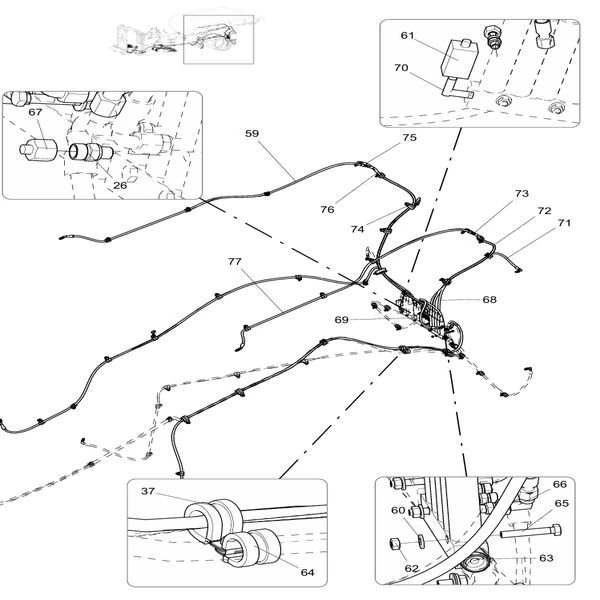

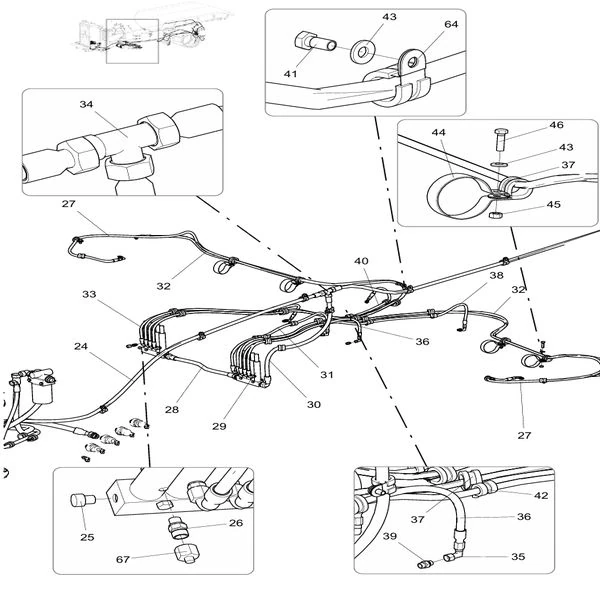

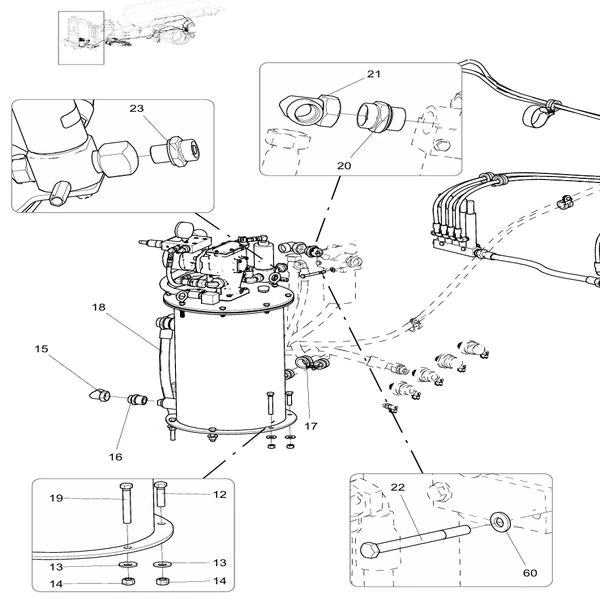

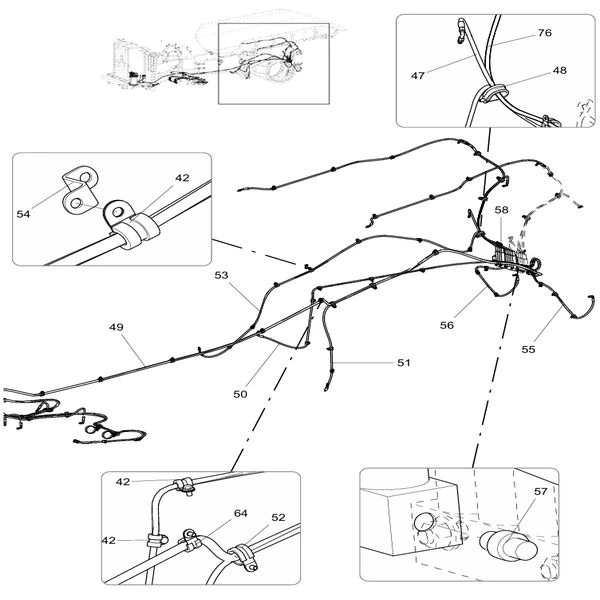

Below is the extensive 77-part breakdown of this lubrication and service center assembly according to the official XCMG XDE130 parts catalog. You can order the entire system or request specific individual components (such as the Lincoln pump, fast-fill receivers, or specific hoses):

Features & Benefits of Our XCMG Service Components

• Premium Lincoln Auto-Lube Integration: The core of this system is the OEM 801141052 Lincoln Hydraulic Grease Pump. By pushing high-viscosity grease through the specialized Single-Line Ejectors (Indexes 29 & 58), it ensures perfect, continuous lubrication to the chassis articulation joints and suspension pins without over-pressurizing the seals.
• Complete Fast-Fill Fluid Station: Includes dedicated ground-level quick-connect receivers for Engine Oil (803747628), Coolant (803747690), Hydraulic Fluid (803747627), and Grease (803747629). This allows pit mechanics to execute rapid fluid top-offs without scaling the truck, drastically reducing maintenance downtime and fall hazards.
• Vibration-Proof Line Routing: Contains over 65 individual Rubber Sleeve Hoops (P-Clips) and dozens of high-tensile GB-standard bolts to lock every inch of high-pressure hydraulic hose against the frame. This completely eliminates the risk of hoses chafing and bursting on rough mining roads.

Ordering & Logistics Guidelines

1. Select Individual Parts or the Complete Kit: Due to the massive scope of this 77-part combination group, customers frequently order specific wear items. Please clearly specify if you need the entire service station assembly, or just replacement parts (e.g., “Index 1: 801141052 Lincoln Grease Pump” or “Index 5: 803747628 Engine Oil Receiver”).
2. Routine Hose Replacement: High-pressure grease lines and hydraulic hoses naturally degrade over time from heat and ozone exposure. When overhauling the auto-lube system, it is highly recommended to replace the associated hose assemblies to prevent unexpected ruptures.
3. Provide Machine Serial Number: Grease manifold locations and fast-fill receiver banks can vary depending on the truck’s specific engine and hydraulic configuration. Providing your XCMG XDE130 VIN ensures our technicians dispatch the 100% correct plumbing setup.

Submit your inquiry today detailing the specific items you need from the 330104334 assembly, along with required quantities and your destination port. Our B2B sales team will provide a detailed commercial quote and freight lead time within 1 business day.
