330103558 Hub Reduction Gear Assembly XCMG XDE130 Dump Truck Parts

330103558 Hub Reduction Gear Assembly for XCMG XDE130

The 330103558 Hub Reduction Gear Assembly is the ultimate torque-multiplying powerhouse designed specifically for the rear electric drive axle of the XCMG XDE130 Electric Driving Dump Truck. Translation Note: While listed in the factory parts manual as a “Hub Reduction Gear,” this master assembly is professionally recognized worldwide as the Planetary Final Drive.

In electric-drive haul trucks, the traction motors spin at incredibly high RPMs. This dual-stage planetary gear system takes that high-speed rotational energy and reduces it, massively multiplying the torque applied directly to the wheel hubs. Built to survive the brutal sheer forces of 130-ton payloads navigating steep mining grades, this comprehensive 28-part assembly includes both the first and second stage planetary carriers, sun gears, the main outer ring gear, magnetic drain plugs, and all critical structural hardware. We supply the complete 330103558 master assembly for rapid drop-in repairs, as well as individual internal gears for specialized transmission rebuild shops. Genuine XCMG OEM parts and premium aftermarket alternatives are available for global dispatch.

General Assembly Specifications

330103558 Component Parts List (Master Table)

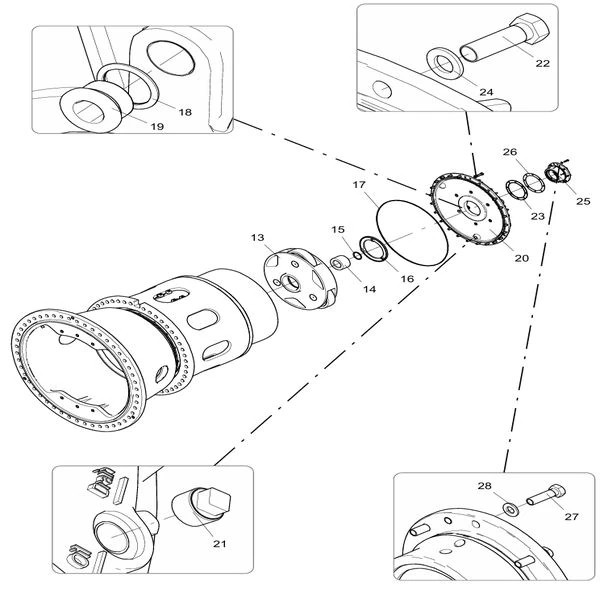

Below is the detailed 28-part breakdown of this planetary final drive assembly according to the official XCMG XDE130 parts catalog. You can order the entire fully assembled gearbox or request specific individual replacement gears and carriers:

Features & Benefits of Our XCMG Final Drives

• Dual-Stage Torque Multiplication: Features precision-machined Class-1 and Class-2 Reducer Assemblies (Planetary Carriers). This highly efficient two-stage reduction takes high-RPM electric motor input and smoothly converts it into the colossal low-speed torque required for off-road mining applications.
• Severe-Duty Vibration Protection: The assembly is secured using premium Nord-Lock Washers (Index 12). These specialized wedge-locking washers ensure that critical internal screws will never rattle loose, even under the most brutal chassis harmonics and reversing loads.
• Integrated Maintenance Solutions: Includes a factory-installed Magnetic Plug Assembly (Index 21) to capture microscopic metal wear particles from the gear oil, extending the life of the sun and ring gears. Exact-thickness shims (Indexes 23 & 26) are also included to perfectly set planetary end-play during rebuilds.

Ordering & Logistics Guidelines

1. Complete Unit vs. Internal Rebuild: You can order the fully assembled, factory-sealed and balanced Hub Reduction Gear unit for a rapid drop-in rear axle repair, or you can order specific internal components (such as planetary carriers, sun gears, or O-rings) if you run a specialized transmission rebuild facility.
2. Provide Machine Serial Number: Planetary gear tooth counts, reduction ratios, and splines can vary depending on the specific electric traction motors paired with your truck. Providing your XCMG XDE130 VIN ensures 100% accurate component matching.
3. Global Heavy Freight Shipping: Because a complete planetary final drive assembly is extremely heavy and filled with precision-machined internals, we utilize robust wooden crating and specialized palletized sea/air freight routing to ensure safe, damage-free delivery directly to your repair facility.

Submit your inquiry today detailing the specific items you need from the 330103558 group, along with required quantities and your destination port. Our B2B sales team will provide a detailed commercial quote and freight lead time within 1 business day.
