330103367 Console Assembly XCMG XDE130 Dump Truck Parts
330103367 Console Assembly — engineered for the XCMG XDE130 electric driving dump truck. This essential interior cabin structure serves as the operator’s central control hub. The complete 9-part installation kit includes the main Box Body Assembly (330105970), Covering Plate Assembly (330103822), heavy-duty baseplate, wiring grommets, and all exact-spec DIN/GB mounting hardware. Designed for ergonomic switch placement and internal wiring protection. Genuine OEM and high-quality aftermarket options available for cabin restorations.
Product Details:
330103367 Console Assembly for XCMG XDE130
The 330103367 Console Assembly is a foundational interior component designed for the operator cabin of the XCMG XDE130 Electric Driving Dump Truck. Often referred to as the Center Console or Control Panel Housing, this assembly provides the structural framework necessary to mount critical electronic rocker switches, shift controls, and operator accessories.
Beyond ergonomics, the console acts as a protective enclosure. It shields delicate interior wiring harnesses and connectors from dust, moisture, and accidental operator kicks. This complete 9-part master group provides everything needed to replace a cracked or damaged console unit. It includes the rugged main box body, the top cover trim plate, floor-mounting baseplate, wiring grommets, and vibration-proof fastening hardware. We supply the complete 330103367 assembly as well as individual interior trim components. Genuine XCMG OEM parts are available for global dispatch.
General Assembly Specifications
| Attribute | Specification Details |
|---|---|
| Assembly Part Number | 330103367 |
| Assembly Name | Console Assembly (Operator Center Console) |
| Compatible Brand | XCMG |
| Applicable Machine | XDE130 Electric Driving Dump Truck |
| Component Type | Cabin Interior / Operator Control Housing |

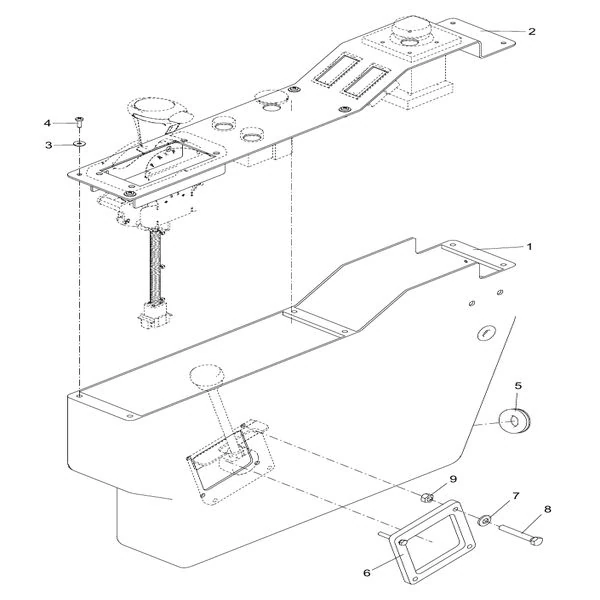

330103367 Component Parts List
Below is the detailed 9-part breakdown of this console assembly according to the official XCMG XDE130 parts catalog. You can order the entire completely trimmed console or request specific individual hardware components:
| Index | Part Number | Description | Qty | Standard / Note |
|---|---|---|---|---|
| 1 | 330105970 | Box Body Assembly (Main Console Housing) | 1 | – |
| 2 | 330103822 | Covering Plate Assembly (Top Trim Bezel) | 1 | – |
| 3 | 805338381 | Washer 5 | 6 | GB/T96.1-2002 |
| 4 | 805140015 | Screw M5×16 | 6 | GB/T818-2000 |
| 5 | 330103698 | Overline Rubber Ring (Wiring Harness Grommet) | 2 | – |
| 6 | 330103823 | Baseplate (Floor Mounting Bracket) | 1 | – |
| 7 | 805301383 | Washer 6 (Conical Spring Washer) | 4 | DIN6796 |
| 8 | 805046889 | Bolt M6×40 | 4 | GB/T5783-2000 |
| 9 | 805238370 | Nut M6 | 4 | GB/T6170-2000 |
Features & Benefits of Our XCMG Cabin Interiors
- Severe-Duty Enclosures: The 330105970 Box Body Assembly is manufactured from high-impact, UV-resistant materials designed to withstand the daily rigors of muddy boots and heavy equipment operation without cracking.
- Safe Wiring Routing: Features dedicated 330103698 Overline Rubber Rings (grommets) to protect sensitive transmission and auxiliary control wiring harnesses from chafing against sharp metal edges, preventing electrical shorts.
- Vibration-Proof Installation: Heavy haul trucks generate intense chassis resonance. This kit includes specialized DIN6796 conical spring washers that maintain continuous tension on the GB-standard M6 mounting bolts, ensuring the console never rattles loose.
Ordering & Inquiry Guidelines
- Select Individual Components: You can order the entire pre-assembled console kit for a rapid cabin repair, or you can order specific sub-components (such as just the 330103822 Covering Plate to refresh a scratched dashboard).
- Provide Machine Serial Number: Switch panel cutouts and interior plastic molding colors can vary based on the specific cabin trim level. Providing your XCMG XDE130 VIN ensures our technicians match your original cabin layout perfectly.
- Safe Cabin Parts Shipping: Interior trim pieces are susceptible to scratching during transit. We utilize specialized protective wrapping and sturdy boxing to ensure your cosmetic cabin parts arrive in pristine, factory-new condition.
Submit your inquiry today detailing the specific items you need from the 330103367 assembly, along with required quantities and your destination port. Our B2B sales team will provide a detailed commercial quote and freight lead time within 1 business day.
