330102643 Rear Seat Assembly XCMG XDE130 Dump Truck Parts

330102643 Rear Seat Assembly for XCMG XDE130

The 330102643 Rear Seat Assembly is a vital structural and electronic-mounting component designed for the chassis of the XCMG XDE130 Electric Driving Dump Truck. Translation Note: While listed in the factory parts manual as a “Rear Seat,” this assembly is professionally recognized as the Dump Body Resting Pad and Proximity Sensor Mount.

When the massive 130-ton dump bed is lowered after discharging a payload, it rests upon specific reinforced “seats” along the rear frame. This specific assembly not only provides a rigid mounting bracket for the bed to rest against, but it also features a dedicated Proximity Support. This support securely holds the magnetic proximity switch that alerts the vehicle’s Engine Control Unit (ECU) that the bed is fully lowered, preventing the truck from being driven at high speeds with the bed raised. We supply the complete 330102643 assembly as well as individual brackets and hardware to ensure your truck operates safely and reliably.

General Assembly Specifications

330102643 Component Parts List

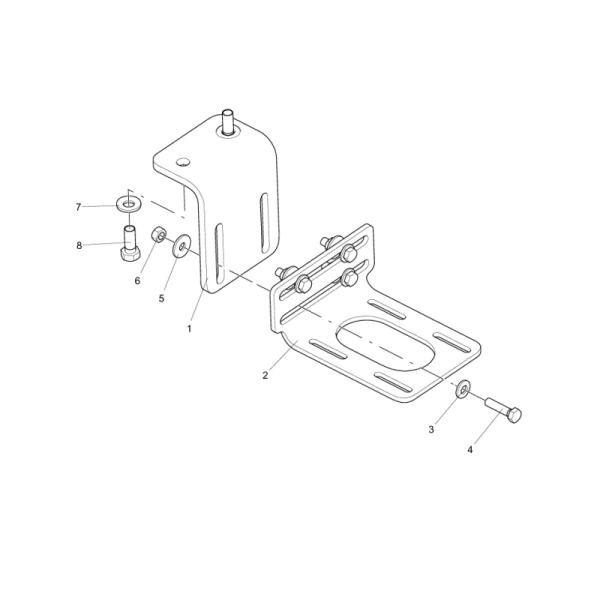

Below is the detailed 8-part breakdown of this dump body mounting assembly according to the official XCMG XDE130 parts catalog. You can order the pre-assembled kit or request specific individual hardware components:

Features & Benefits of Our XCMG Chassis Mounts

• Critical Electronic Safety Integration: The 330102663 Proximity Support is precisely angled to hold the bed-down sensor at the exact OEM distance from the dump body. A bent or damaged support will cause false sensor readings, unnecessarily limiting the truck’s top speed and hurting site productivity.
• Severe-Duty Structural Steel: The 330102662 Rear Mounting Bracket is fabricated from thick-gauge steel to withstand the immense impact force of a 130-ton steel dump bed dropping into its resting position.
• Vibration-Proof Hardware: The constant impact of loading and dumping generates intense chassis resonance. This kit features specialized DIN6796 conical spring washers (Indexes 3 & 7) that maintain continuous tension on the GB-standard mounting bolts, ensuring the sensor brackets never rattle out of alignment.

Ordering & Inquiry Guidelines

1. Select Individual Parts: You can order the entire pre-assembled mounting kit for a rapid repair, or specify exact internal part numbers you need from the table above (e.g., if you only need the sensor bracket, specify “Index 1: 330102663 Proximity Support”).
2. Sensor Replacement Notice: Please note that this assembly includes the structural brackets and hardware. The electronic proximity switch/sensor itself is sold separately. Let our sales team know if you need the electronic sensor added to your quote.
3. Provide Machine Serial Number: Sensor bracket geometries and frame mounting point locations can vary based on regional safety regulations or specific chassis designs. Providing your XCMG XDE130 VIN ensures our technicians match your original chassis layout perfectly.

Submit your inquiry today detailing the specific items you need from the 330102643 assembly, along with required quantities and your destination port. Our B2B sales team will provide a detailed commercial quote and freight lead time within 1 business day.
