330100659 Soft Air Duct Assembly XCMG XDE130 Dump Truck Parts
330100659 Soft Air Duct Assembly — engineered for the XCMG XDE130 electric driving dump truck. Professionally recognized as the Traction Motor Cooling Bellows, this critical flexible duct routes high-volume cooling air to the rear electric drive motors. The complete 4-part sub-assembly includes the heavy-duty flexible Soft Air Duct (330100727), rigid Air Duct Flanges, Blind Flanges, and 32 factory-spec structural rivets. Designed to withstand severe axle oscillation without tearing. Genuine OEM and high-quality aftermarket options available.
Product Details:
330100659 Soft Air Duct Assembly for XCMG XDE130
The 330100659 Soft Air Duct Assembly is a vital thermal management component designed specifically for the XCMG XDE130 Electric Driving Dump Truck. Unlike mechanical-drive trucks, electric-drive ADTs rely on massive traction motors housed within the rear axle to generate propulsion. These motors produce extreme heat under heavy payloads and require constant, high-velocity forced air cooling to prevent thermal derating and catastrophic electrical failure.
Because the rear axle constantly pivots and oscillates over uneven mining terrain, rigid cooling pipes cannot be used. This assembly utilizes a highly durable, flexible bellows design that maintains airtight structural integrity while stretching and compressing with the suspension. This complete drop-in kit features the primary flexible duct, mounting flanges, and all required structural rivets for a factory-grade seal. We supply the complete 330100659 assembly as well as individual sub-components to support targeted repairs. Genuine XCMG OEM parts and premium aftermarket alternatives are available for global dispatch.
General Assembly Specifications
| Attribute | Specification Details |
|---|---|
| Assembly Part Number | 330100659 |
| Assembly Name | Soft Air Duct Assembly (Traction Motor Cooling Bellows) |
| Compatible Brand | XCMG |
| Applicable Machine | XDE130 Electric Driving Dump Truck |
| Component Type | Chassis Cooling / Electric Drivetrain Thermal Management |

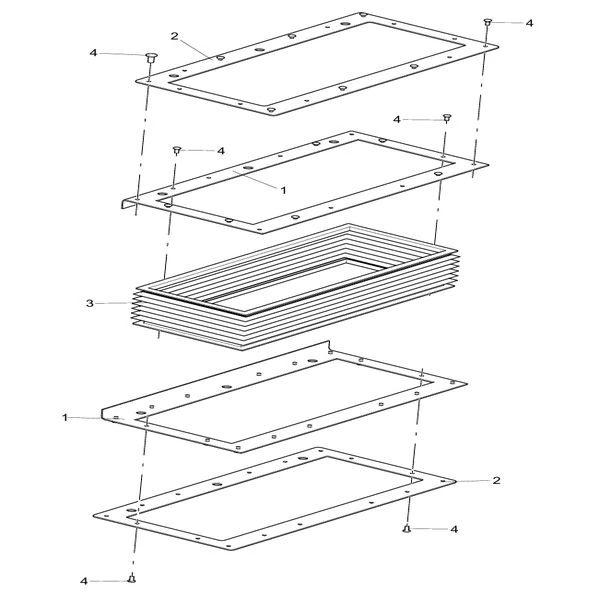

330100659 Component Parts List (Master Table)
Below is the detailed 4-part breakdown of this flexible cooling duct assembly according to the official XCMG XDE130 parts catalog. You can order the fully assembled duct or request specific individual hardware components:
| Index | Part Number | Description | Qty | Standard / Note |
|---|---|---|---|---|
| 1 | 330100729 | Blind Flange (Reinforcement Ring) | 2 | – |
| 2 | 330100728 | Air Duct Flange (Mounting Base) | 2 | – |
| 3 | 330100727 | Soft Air Duct (Flexible Synthetic Bellows) | 1 | – |
| 4 | 805547361 | Rivet 5×9 | 32 | GB/T872-1986 |
Features & Benefits of Our XCMG Thermal Management Components
- Severe-Duty Flexibility: The main 330100727 Soft Air Duct is constructed from advanced synthetic elastomers reinforced with tear-resistant fabric. This allows it to absorb massive, continuous chassis articulation without suffering fatigue cracks or blowouts.
- High-Pressure Integrity: Blower motors push massive volumes of air through these ducts. This assembly utilizes exactly 32 GB/T872-1986 structural rivets to sandwich the flexible duct between the metal flanges, preventing ballooning or separation under high internal static pressure.
- Prevents Motor Burnout: Replacing torn or collapsed cooling bellows ensures that 100% of the forced air reaches the traction motors, eliminating the risk of overheating that causes costly electrical faults and machine downtime.
Ordering & Logistics Guidelines
- Multiply by Axle Requirement: The XCMG XDE130 rear axle typically utilizes two (2) of these soft air duct assemblies (one for each wheel motor). This part number (330100659) represents one complete duct assembly. Please adjust your order quantity accordingly to ensure full axle coverage.
- Select Individual Parts: You can order the completely riveted, ready-to-install assembly, or request specific sub-components if you are repairing a localized flange issue.
- Provide Machine Serial Number: Flange bolt patterns and overall duct lengths can vary slightly based on specific traction motor configurations. Providing your XCMG XDE130 VIN ensures our technicians supply the 100% correct component.
Submit your inquiry today detailing the specific items you need from the 330100659 assembly, along with required quantities and your destination port. Our B2B sales team will provide a detailed commercial quote and freight lead time within 1 business day.
