330100023 Suspension Assembly XCMG XDE130 Dump Truck Parts

330100023 Suspension Assembly for XCMG XDE130

The 330100023 Suspension Assembly is the primary ride-control and shock-absorption master group designed specifically for the XCMG XDE130 Electric Driving Dump Truck. On ultra-class mining trucks, traditional leaf or coil springs are incapable of handling the extreme weight. Instead, this system utilizes massive hydro-pneumatic suspension cylinders (nitrogen/oil struts) to dynamically dampen the brutal impacts of loading shovels and uneven haul roads.

This master combination group maps out the primary load-bearing cylinders for the entire vehicle, featuring the heavy-duty Front Suspension Cylinders and the massive Rear Suspension Cylinders. Maintaining these struts is critical; a blown suspension cylinder will cause the truck to lean, severely accelerating tire wear and risking catastrophic frame fractures. We supply the complete 330100023 master group framework as well as the individual front and rear struts for targeted replacement. Genuine XCMG OEM cylinders and premium aftermarket alternatives are available for global dispatch.

General Assembly Specifications

330100023 Component Parts List (Master Table)

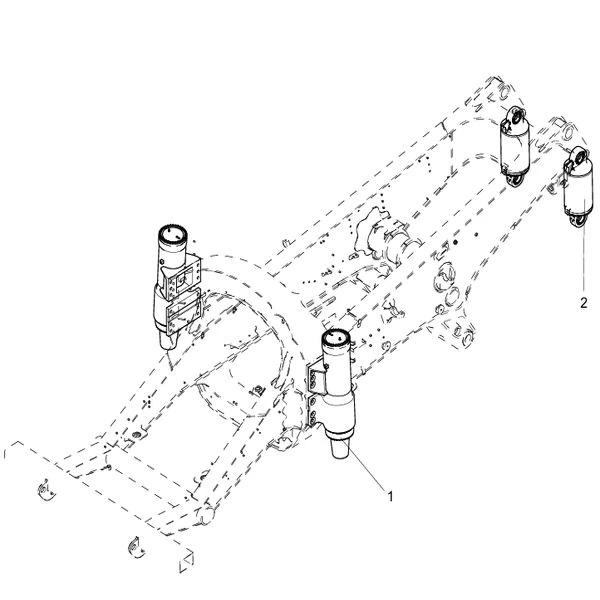

Below is the primary breakdown of the suspension cylinders included in this master assembly according to the official XCMG XDE130 parts catalog. You can request pricing for the entire system or specify individual front/rear struts:

*Note: The official catalog features expanded breakdowns for the Rear Suspension Cylinders across multiple internal diagrams. The quantities listed above represent the physical struts required for the primary front and rear axles.

Features & Benefits of Our XCMG Suspension Cylinders

• Maximum Payload Dampening: Utilizing a variable-rate nitrogen gas charge combined with hydraulic oil dampening, these cylinders easily absorb the massive kinetic energy generated when 130 tons of rock are dropped into the dump bed.
• Prevents Chassis Fractures: Properly functioning hydro-pneumatic struts isolate the rigid steel frame from extreme twisting and impact forces, saving your fleet hundreds of thousands of dollars in structural welding repairs.
• Severe-Duty Rod & Seal Integrity: The piston rods are induction-hardened and thick-chrome plated to resist rock pitting. Internally, they feature advanced multi-lip polyurethane seals designed to retain extreme gas and fluid pressures without weeping.

Ordering & Logistics Guidelines

1. Select Front or Rear Struts: Because of their immense size and cost, customers typically order suspension cylinders individually or in axle-pairs. Please clearly specify if you require the Front Cylinders (330106918) or the Rear Cylinders (330100807).
2. Provide Machine Serial Number: Cylinder stroke lengths, mounting pin diameters, and nitrogen charge port configurations can vary depending on the production year and specific payload ratings. Providing your XCMG XDE130 VIN guarantees 100% correct fitment.
3. Global Heavy Freight Shipping: Ultra-class suspension cylinders are incredibly heavy and highly pressurized assemblies. We utilize robust custom wooden crating, specialized flat-racks, and strict sea-freight handling protocols to ensure safe, damage-free delivery to your mine site.

Submit your inquiry today detailing the specific items you need from the 330100023 master group, along with required quantities and your destination port. Our B2B sales team will provide a detailed commercial quote and freight lead time within 1 business day.
