C3867646 XCMG GR2605 motor grader o-ring
Part Number: C3867646 (3867646)
Type: O‑Ring Seal / Circular Cross‑Section Seal Ring
Material: Fluorine Rubber (FKM) / Nitrile Rubber (NBR)
Inner Diameter: Approx. 75.9mm (2.989″)
Share:
Product Details:
C3867646 XCMG GR2605 motor grader o-ring
Technical Parameters
Part Number: C3867646 (3867646)
Type: O‑Ring Seal / Circular Cross‑Section Seal Ring
Material: Fluorine Rubber (FKM) / Nitrile Rubber (NBR)
Inner Diameter: Approx. 75.9mm (2.989″)
Cross‑Section Diameter: Approx. 1.78mm (0.070″)
Operating Temperature: -40℃ to +200℃ (FKM)
Operating Pressure: 0–40MPa
Applicable Media: Engine Oil, Diesel Fuel, Coolant, Compressed Air
Cross Reference: 6V3865, AS568A-041
Standard: Cummins Original Standard, AS568A
Application
Applicable Engines: Cummins M11, ISM11, QSM11, L10, K19, K38, N14, NT855 series diesel engines
Equipment:
- Heavy Commercial Vehicles: Dongfeng Tianlong, FAW J6, Shacman Delong, Foton Auman
- Construction Machinery: Komatsu, Caterpillar, Sany, XCMG excavators, loaders, bulldozers
- Generator Sets: 150–500kW Cummins diesel generator sets
- Industrial Equipment: Marine main engines, air compressors, water pumps, oilfield machinery
Installation Locations:
- Cylinder Head/Block: Water jacket holes, oil gallery holes, tappet bore seals
- Fuel System: High‑pressure fuel pump, injectors, fuel line connections
- Lubrication System: Oil cooler, oil filter housing, oil line fittings
- Cooling System: Thermostat housing, water pump connections, coolant lines
- Other Areas: Turbocharger center housing, air compressors, crankcase vents
Common Faults & Troubleshooting
1. Aging Hardening/Cracking
- Causes: Long‑term high temperature, fluid corrosion, ozone aging, material degradation
- Symptoms: Seal failure, oil/coolant seepage, pressure drop, unstable performance
- Solution: Replace with genuine C3867646 O‑ring; clean groove, check operating temperature
2. Permanent Compression Set/Loss of Elasticity
- Causes: Long‑term compression, overheating, material fatigue, over‑tight installation
- Symptoms: Poor sealing contact, persistent leakage, loss of compression rebound
- Solution: Install new seal; maintain proper compression (15%–30%)
3. Damage/Cutting/Breakage
- Causes: Installation scratches, groove burrs, fluid shock, foreign object extrusion
- Symptoms: Sudden leakage, heavy fluid seepage, rapid pressure drop
- Solution: Replace seal; smooth groove, remove burrs, proper assembly
4. Swelling/Softening/Dissolution
- Causes: Incompatible media, low‑quality oil, chemical corrosion
- Symptoms: Volume expansion, soft texture, extrusion from groove, seal failure
- Solution: Use FKM C3867646; use approved lubricants and fluids
Get a personalized quote now

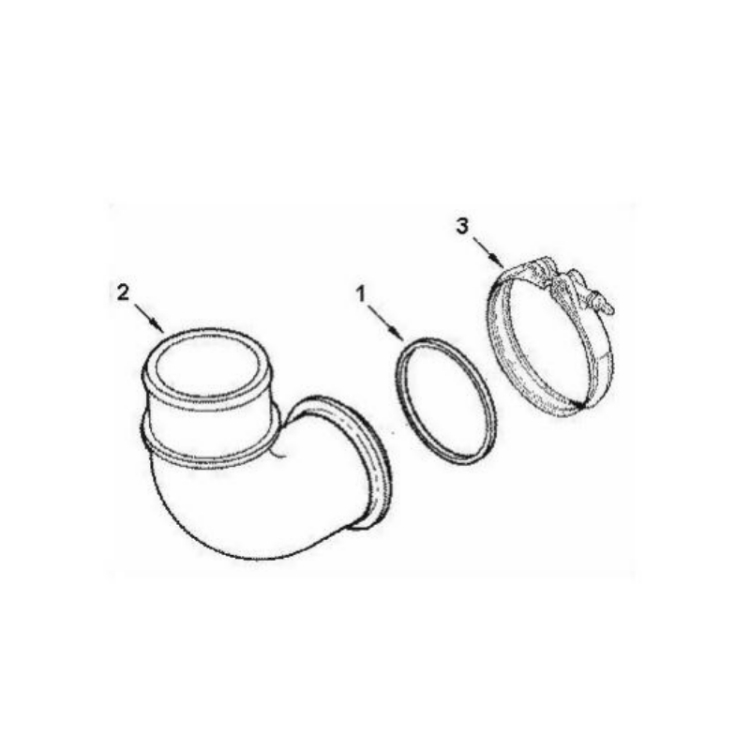

1. C3867646 O-ring seal
2. C4933777 Inlet transition pipe
3. C5266140 V-clamp
*For other spare parts procurement needs, please contact us!
