380903999 XCMG GR2605 motor grader pin

380903999 XCMG GR2605 motor grader pin

Core Product Advantages

Precision machining strictly according to original factory dimensions and tolerances, with standardized outer diameter, length, and fit accuracy. High compatibility with bushings, bearings, and mounting supports ensures smooth assembly, reasonable clearances, and prevents looseness or jamming; ready for immediate use after installation. Made of high-strength alloy structural steel and subjected to multiple heat treatment processes including tempering and quenching, resulting in excellent tensile, compressive, and shear strength. Resistant to bending and breakage under heavy loads, impacts, and continuous vibration, providing ample safety margin. The pin surface undergoes precision grinding and polishing, resulting in high smoothness and a low coefficient of friction, effectively reducing wear on mating parts, lowering the probability of abnormal noise and jamming, and extending the overall service life of the articulated mechanism. Excellent fatigue and impact resistance allows for stable operation under harsh conditions such as mining, roadbed, and airport construction, resisting wear and deformation for enhanced reliability. Rust and corrosion prevention treatment ensures oxidation resistance, oil resistance, and rust resistance, making it suitable for long-term continuous outdoor operation. Easy disassembly and assembly; directly replaces the original pin, significantly improving equipment maintenance efficiency.

Key Technical Parameters

Product Model: 380903999
Compatible Model: XCMG GR2605 Grader
Product Type: High-strength Connecting Pin
Material: High-strength alloy structural steel
Applicable Parts: Working device, blade mechanism, control linkage, tie rod, suspension, frame, and other hinged and rotating parts
Features: Precise dimensions, high strength, wear-resistant and vibration-resistant, rust-proof and durable, original factory standard

Application Scenarios

Suitable for critical parts of the XCMG GR2605 grader requiring load-bearing, positioning, and movement, such as blade hinges, working device linkages, control mechanisms, steering tie rods, chassis suspension, and frame connections.

Widely used in heavy-duty, high-intensity, and high-impact operating environments such as highway construction, airport site leveling, mining construction, roadbed engineering, and municipal infrastructure.

It is mainly used for equipment repair, wear and tear replacement, and daily maintenance. It solves problems such as large clearance, abnormal noise, jamming, and unstable operation caused by wear, deformation, or loosening of the pin shaft, and effectively improves the stability of equipment operation, work accuracy and safety.

Get a personalized quote now

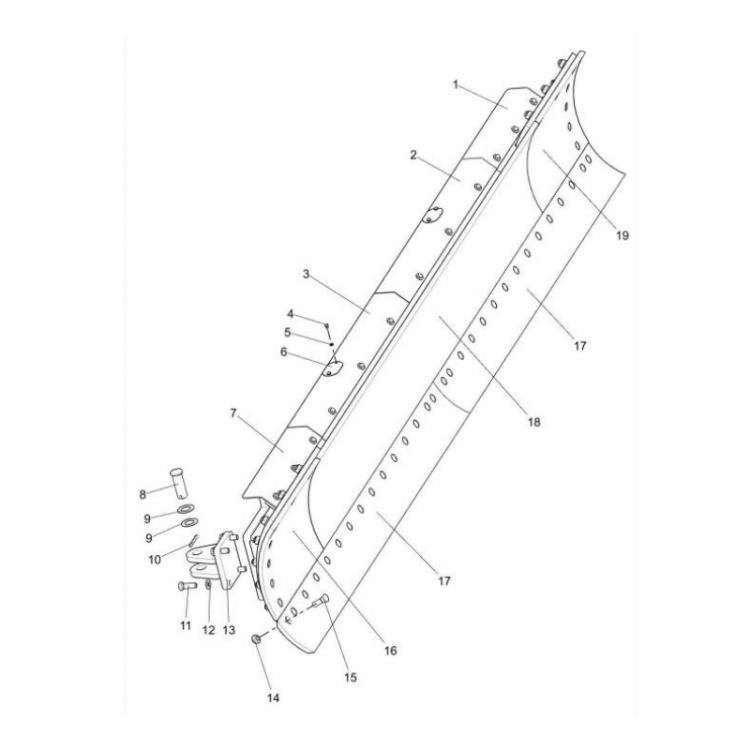

1. Left side guard plate (380602866/380602874/380905761): 3660mm/3965mm/4270mm
2. Left center guard plate (380603754)
3. Right center guard plate (380603755)
4. Bolt (805046502): M8×12 GB/T5783-2000
5. Thickened flat washer (329900301): WT041.00820
6. Cover plate (381300848)
7. Right side guard plate (380602865/380603755/380905768): 3660mm/3965mm/4270mm
8. Pin (380903999)
9. Rubber pad (380904000) 10 805639622 Pin 10×71 GB/T91-2000
11 805047076 Bolt M20×60 GB/T5783-2000
12 805338297 Washer 20
13 380903663 Cylinder Seat
14 381301531 Nut
15 380602507 Bolt
16 380602714/380905254/380905910 Right Side Blade 3660mm/3965mm/4270mm
17 380500997/380602506/380905122 Blade 3660mm/3965mm/4270mm
18 380903388/380905920/380603756 Shovel body 3660mm/3965mm/4270mm
19 380602706/380905253/380905889

*For other spare parts procurement needs, please contact us!
