318308000 engine compartment electrical system parts XCMG XE2000 excavator spare parts

Intelligent Control, Stable Power Supply – XCMG XE2000 Engine Compartment Electrical System (318308000)

In modern mining operations, the reliability of the electrical system directly impacts equipment operating efficiency. The XCMG XE2000 excavator’s original engine compartment electrical system (part number: 318308000) adopts German electrical technology standards, providing your equipment with intelligent and stable power assurance.

Core Advantages

✅ German Electrical Technology: Adopts Siemens intelligent control system, improving response speed by 50%.

✅ Multiple Safety Protections: Triple circuit protection design (overload + short circuit + voltage fluctuation), reducing failure rate by 65%.

✅ Long-lasting and Durable Design: Waterproof and dustproof rating up to IP68, adaptable to extreme environments from -40℃ to 85℃.

✅ Intelligent Diagnostic System: Built-in fault self-diagnosis function, which can quickly locate electrical problems.

Performance Parameter Comparison

Parameter Indicators: Original Equipment Manufacturer System / Ordinary Parts
Response Speed: ≤10ms / ≥30ms
Lifespan: ≥8,000 hours / ≤3,000 hours
Waterproof Rating: IP68 / IP54
Maintenance Cost: Reduced by 45% / Routine Maintenance

Suitable for Harsh Working Conditions

Continuous operation in open-pit mines
Large-scale earthwork projects
High humidity and dusty environments
Extremely cold/high temperature special climates

Get a personalized quote now

*For other spare parts procurement needs, please contact us!

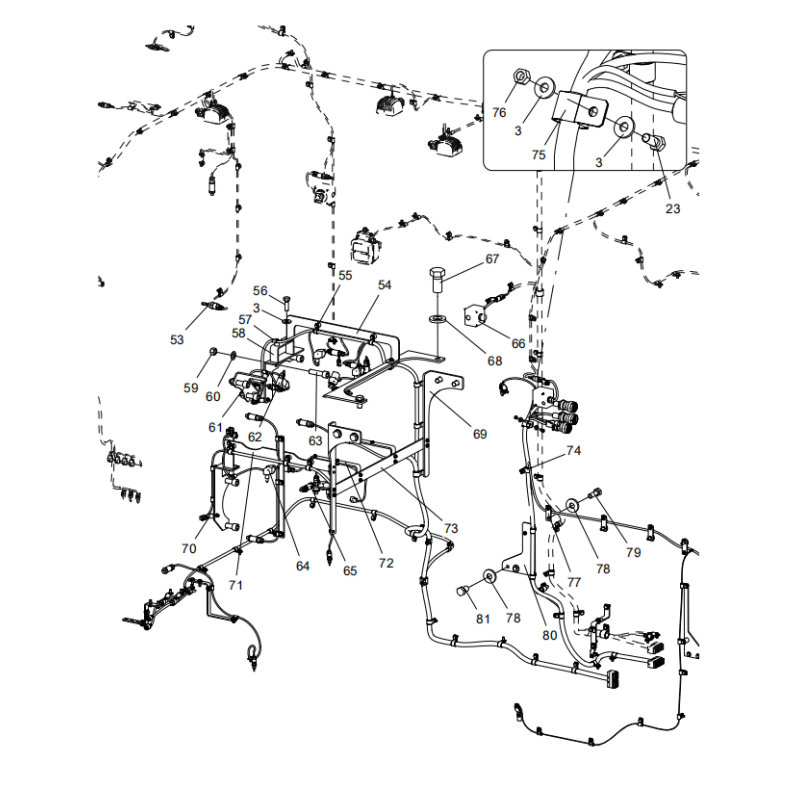

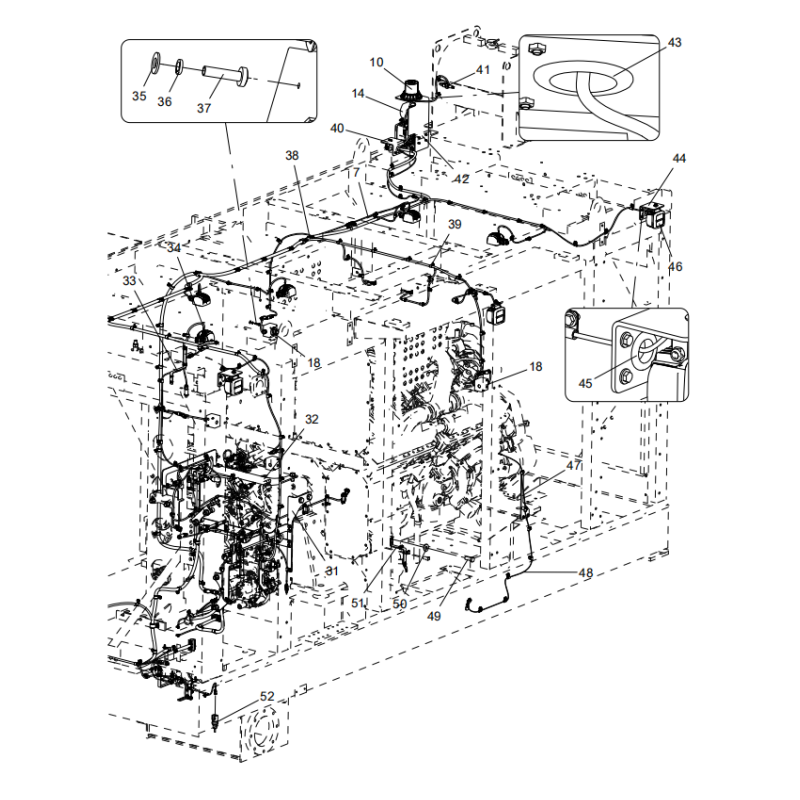

1 803588657 5 WORK LAMP
2 803697895 28 IMPREGNATED HOOP
3 329900296 277 THICKENED LARGE WASHER
4 805046504 206 BOLT M8×16 GB/T5783-2000
5 318307845 1 POWER-ROOM CEILING HARNESS ASSEMBLY
6 803697899 18 IMPREGNATED HOOP
7 803593994 2 CAMERA
8 803697884 18 IMPREGNATED HOOP
9 318304870 1 RIGHT-REAR CAMERA BRACKET
10 803592249 2 STROBE LIGHT
11 805140016 6 SCREW M5×20 GB/T818-2000
12 805338380 6 WASHER 5 GB/T93-1987
13 805338383 6 WASHER 5 GB/T97.1-2002
14 803588185 2 REVERSING ALARM
15 803589420 2 WORK LAMP
16 318304794 1 RIGHT-REAR LAMP BRACKET
17 803697888 81 IMPREGNATED HOOP
18 316508013 4 EMERGENCY STOP SWITCH ASSEMBLY
19 803697891 10 IMPREGNATED HOOP
20 318307836 1 POWER-ROOM PUMP ROOM HARNESS ASSEMBLY
21 318308030 1 AUXILIARY FUEL TANK TEMPERATURE BRACKET
22 819948100 15 MOUNTING CLAMP
23 805046508 51 BOLT M8×20 GB/T5783-2000
24 318810501 2 PROXIMITY SWITCH EXTENDED LINE
25 318307997 1 ENGINE COMPARTMENT DISC VALVE BRACKET
26 329900301 2 THICKENED FLAT WASHER
27 318307837 1 POWER-ROOM ENGINE HARNESS ASSEMBLY
28 318308014 1 MAIN PUMP II BRACKET
29 803506272 8 PRESSURE SENSOR
30 318307995 1 DISPLACEMENT QUADRUPLE VALVE BRACKET

7 803593994 2 CAMERA
10 803592249 2 STROBE LIGHT
14 803588185 2 REVERSING ALARM
18 316508013 4 EMERGENCY STOP SWITCH ASSEMBLY
31 318307982 1 TRANSFER CASE RIGHT BRACKET
32 318307978 1 TRANSFER CASE UP PLATE
33 318308023 1 LIQUID LEVEL SWITCH BRACKET
34 318304721 1 PUMP ROOM TOP BRACKET
35 805338382 10 WASHER 4 GB/T97.1-2002
36 805338379 10 WASHER 4 GB/T93-1987
37 805140011 10 SCREW M4×16 GB/T818-2000
38 803697889 1 IMPREGNATED HOOP
39 803697886 8 IMPREGNATED HOOP
40 318304859 1 LEFT-REAR CAMERA BRACKET
41 803504842 1 WATER LEVEL SENSOR
42 318304856 1 LEFT-REAR LAMP BRACKET
43 801972258 2 ADHESIVE TAPE L=160
44 318304821 2 POWER ROOM LEFT/RIGHT FRONT LAMP BRACKET
45 310201876 2 ADHESIVE TAPE L=125
46 803589267 3 LEDWORK LAMP
47 318304796 1 ENGINE LEFT-FRONT SUSPENDED BRACKET
48 318305012 1 GENERATOR EXCITATION HARNESS ASSEMBLY
49 805051726 1 AMERICAN BOLT
50 329900297 1 THICKENED LARGE WASHER
51 318304922 1 OIL PRESSURE SWITCH WIRE BRACKET
52 803592543 4 TEMPERATURE SENSOR

3 329900296 277 THICKENED LARGE WASHER
23 805046508 51 BOLT M8×20 GB/T5783-2000
53 803595829 1 LIQUID LEVEL SWITCH
54 318308013 1 MAIN PUMP III BRACKET
55 803697887 4 IMPREGNATED HOOP
56 805046509 18 BOLT M8×25 GB/T5783-2000
57 803697902 25 IMPREGNATED HOOP
58 318308002 1 MAIN PUMP III BRACKET
59 805046475 6 NUT M20 GB/T6170-2000
60 805338288 6 WASHER 20 GB/T97.1-2002
61 318308016 1 MAIN PUMP MIDDLE BRACKET
62 803506273 4 PRESSURE SENSOR
63 805141294 6 SCREW M20×75 GB/T70.1-2008
64 803545559 6 OIL CONTAMINATION SENSOR
65 803593541 6 PRESSURE SENSOR
66 316508011 1 BUTTON SWITCH ASSEMBLY
67 805046588 6 BOLT M20×40 GB/T5783-2000
68 329900385 6 THICKENED FLAT WASHER
69 318307984 1 TRANSFER CASE LEFT BRACKET
70 819942516 3 AMP MOUNTING FIXTURE
71 318308005 1 MAIN PUMP II BRACKET
72 318308012 2 MAIN PUMP III PLATE
73 318308026 1 TRANSFER CASE LOWER PLATE
74 803697890 3 IMPREGNATED HOOP
75 803697894 6 IMPREGNATED HOOP
76 805238378 4 NUT M8 GB/T6170-2000
77 318304719 4 POWER ROOM BRACKET II
78 329900298 6 THICKENED LARGE WASHER
79 805047309 4 BOLT 7/16-14UNC-2A×30
80 318304774 1 POWER ROOM BRACKET I
81 805046545 2 BOLT M12×20

##
