318307515 steel pipe assembly XCMG XE2000 excavator spare parts

XCMG XE2000 Excavator Steel Pipe Assembly (Part No. 318307515): Smooth Transmission, Ensuring Efficient Power Flow

In the power and media circulation system of the XCMG XE2000 excavator, the steel pipe assembly (part no. 318307515) is the “core channel” for maintaining the stable transmission of critical media such as hydraulic oil and coolant. With its precise structural design and reliable performance, it provides crucial support for the continuous and efficient operation of the equipment during high-intensity mining operations.

The steel pipe assembly plays an indispensable role in the XE2000 excavator’s operating system. It consists of multiple precision-machined steel pipes and matching connectors, connecting core components such as the hydraulic pump, cylinders, control valves, and radiator to construct a complete power transmission and heat dissipation circulation network. When the excavator is performing heavy-load digging or rapid operations, the hydraulic oil is transmitted under high pressure and efficiently through this assembly, injecting strong power into each actuator; simultaneously, the coolant circulates through it, promptly removing heat generated by the engine and other components, ensuring stable operation of the equipment at a suitable temperature. If the steel pipe assembly experiences blockages, leaks, or loose connections, it can directly lead to power loss, equipment overheating and shutdown, severely impacting construction progress. This steel pipe assembly, however, provides a reliable safeguard for the safe and stable transmission of the medium.

Specifically designed for the XCMG XE2000 excavator, the steel pipe assembly (part number 318307515) boasts excellent adaptability and durability. The diameter, length, and bending angle of each pipe section are precisely designed according to the XE2000 excavator’s piping layout. The connector specifications perfectly match the equipment interfaces, allowing for seamless integration with the entire machine system after installation, ensuring unobstructed media transport. Using high-strength alloy steel as the base material, it is formed through automated precision welding, resulting in smooth and robust welds that have undergone pressure testing and rust prevention treatment. It can easily withstand the high-pressure impacts of the hydraulic system and possesses excellent corrosion and wear resistance, readily handling the harsh environments of mines with high dust, high humidity, and large temperature differences, effectively extending service life and reducing the failure rate.

For XCMG XE2000 excavator users, the steel pipe assembly (part number 318307515) is a key component for maintaining the efficient operation of the equipment’s power and cooling systems. Choosing original equipment manufacturer (OEM) quality ensures that this steel pipe assembly builds a stable “energy transmission channel” for your XE2000 excavator, helping the equipment continuously output strong power during high-intensity construction and ensuring the smooth progress of the project.

Get a personalized quote now

*For other spare parts procurement needs, please contact us!

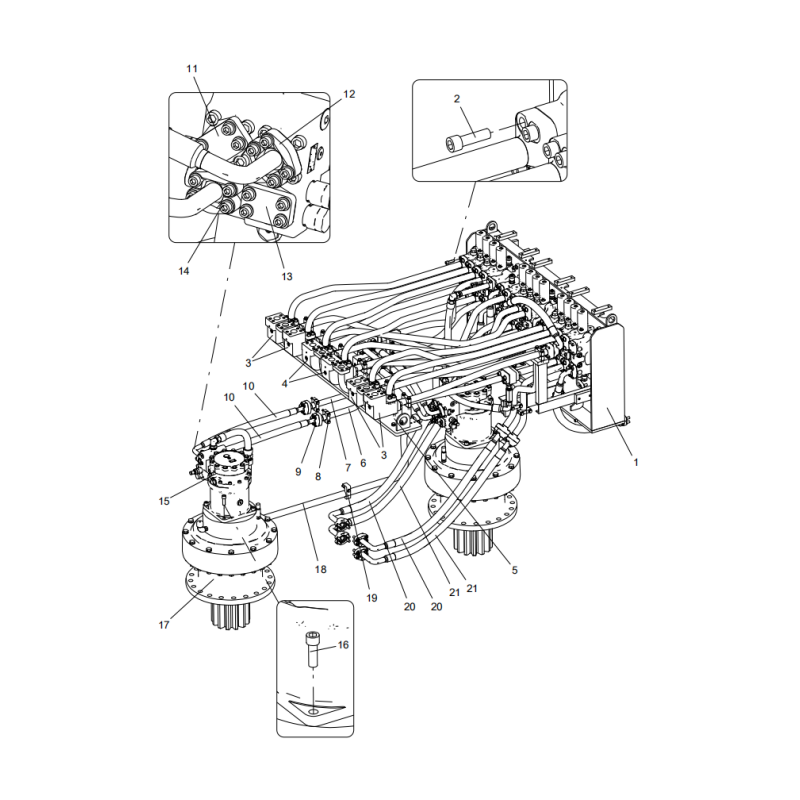

318307498 turntable main oil pipeline

1 318307530 1 MAIN VALVE INSTALLATION ASSEMBLY
2 805139922 135 SCREW M16×55 GB/T70.1-2008
3 318307525 4 CONFLUENT BLOCK
4 318307477 2 CONFLUENT BLOCK
5 318307480 1 BRACKET
6 318307515 1 STEEL PIPE ASSEMBLY
7 318307533 1 STEEL PIPE ASSEMBLY
8 318005591 2 PIPE CLAMP ASSEMBLY
9 803164323 4 FLANGE ASSEMBLY
10 804414127 2 HOSE ASS’Y
11 318810931 2 FLANGE BLOCKING PLATE
12 318810885 2 FLANGE ASSEMBLY
13 318810946 2 FLANGE BLOCKING PLATE
14 318811347 2 FLANGE ASSEMBLY
15 804001699 2 SLEWING MOTOR
16 805139902 8 SCREW M20×60 GB/T70.1-2008
17 800365519 2 SLEWING REDUCER
18 318307507 1 OIL REFILL PIPELINE
19 318307502 4 PIPE CLAMP ASSEMBLY
20 804414167 2 HOSE ASS’Y
21 804414187 2 HOSE ASS’Y

##
