SSY010033304 Boom Assembly Sany SY1350C1C3KH Tracked hydraulic excavator spare parts

SSY010033304 Boom Assembly Sany SY1350C1C3KH Tracked hydraulic excavator spare parts

The boom assembly is the core load-bearing component of the equipment, working in conjunction with the hydraulic system to complete lifting, loading, and excavation operations. It is made of thickened high-strength steel and welded in one piece, undergoing precision treatment such as stress relief and weld flaw detection. It has high overall rigidity, resistance to pressure and torsion, and is not easily deformed, making it suitable for heavy-duty continuous operation conditions in mining and earthmoving.
This product is an original factory standard assembly with precise hinge hole diameters, perfectly compatible with cylinders, pins, and other matching accessories, ensuring a snug fit and smooth, coordinated operation. The product is impact-resistant and fatigue-resistant, and is not prone to cracking or deformation under long-term heavy-duty operation. Older booms are prone to weld cracking, deformation and sagging, and excessive wear and play in the hinge holes, leading to malfunctions such as weak lifting, stuck operation, and overall machine vibration. This product supports in-situ non-destructive replacement, suitable for equipment overhauls, maintenance, and batch assembly, effectively reducing operation and maintenance costs.

Core technical parameters

– Product Model: SSY010033304
-Product Name: Boom Assembly
– Product Type: Original Equipment Assembly Components for Core Load-Bearing Operations in Construction Machinery
– Compatible Equipment: Compatible with corresponding host operating systems, supporting in-situ non-destructive replacement and assembly.
– Main body material: High-strength thickened alloy steel, resistant to pressure and torsion, impact, and not easily deformed.
– Manufacturing process: integral welding, stress relief, weld flaw detection, precision hole calibration
– Core functions: load bearing, lifting and extending, construction support, and ensuring equipment operation.
– Load-bearing capacity: Sufficient rated load capacity, strong impact resistance, and no sagging or deformation under heavy loads.
– Structural characteristics: Overall reinforced structure, resistant to torsion and bending, uniform rigidity, and stable under stress.
– Hinge precision: Original factory standard hole diameter, precise alignment, and no excessive play in the mating pin.
– Damage resistance characteristics: strong and crack-resistant welds, wear-resistant and fatigue-resistant plates, and able to withstand continuous high-frequency operation.
– Environmentally resistant: abrasion-resistant, corrosion-resistant, and temperature-resistant, suitable for complex and heavy-duty outdoor working conditions.
– Assembly characteristics: Original factory assembly standard size, high part compatibility, no modification required for disassembly and assembly.
– Applicable working conditions: heavy-duty excavation, high-frequency lifting, continuous construction, and bumpy/impact operation scenarios.
– Service life: Strong structural stability, long-term fatigue resistance, not easy to crack, deform and fail.

The SSY010033304 original boom assembly boasts strong load-bearing capacity, torsion and crack resistance, precise structure, and stable operation, making it suitable for heavy-duty construction scenarios in engineering machinery. It resolves issues such as boom deformation and cracking, articulation play, insufficient lifting power, and movement sluggishness, stabilizing equipment performance, mitigating construction safety hazards, and reducing overhaul costs. It is suitable for equipment overhaul and refurbishment, routine maintenance, and mass assembly.

Get a personalized quote now

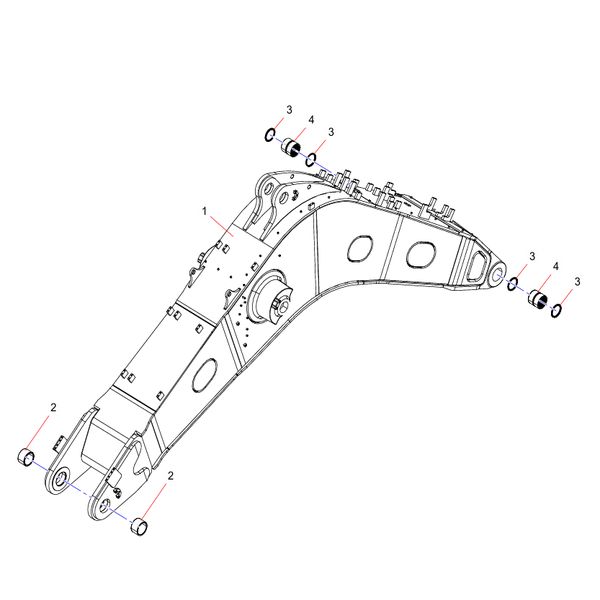

1 SSY010033304 Boom Assembly
2 SSY004649259 Bushing 170×200×120
3 SSY004575032 Butter Ring 160X190X10
4 SSY004649241 Bushing 160×190×188

*For other spare parts procurement needs, please contact us!
