SSY009581788 Stick Assembly Sany SY1350C1C3KH Tracked hydraulic excavator spare parts

SSY009581788 Stick Assembly Sany SY1350C1C3KH Tracked hydraulic excavator spare parts

The boom assembly is a key operating component of the equipment, mainly responsible for bending, extending, and retracting, as well as assisting in digging. It works in conjunction with the hydraulic cylinders. It is made of high-strength, thickened steel plates welded together in one piece, and undergoes stress relief and weld flaw detection for precision treatment. It is resistant to bending and torsion, not easily deformed, and can withstand high-frequency impacts, making it suitable for heavy-duty continuous operations in earthmoving and mining.
This product is an original factory standard assembly with precise hinge holes, compatible with various matching cylinders, pins, and bushings, ensuring a close fit and smooth operation. The product is wear-resistant and fatigue-resistant, and is not prone to loosening or cracking under high-intensity operation. Older sticks are prone to problems such as worn holes, deformation and bending, weld cracking, and excessive clearance, leading to sluggish movement, weak digging, and operational vibration. This product supports in-situ non-destructive replacement, suitable for equipment overhauls, maintenance, and batch assembly, effectively reducing operation and maintenance costs.

Core technical parameters

– Product Model: SSY009581788
– Product Name: Bucket Arm Assembly
– Product Type: Original Equipment Core Components for Construction Machinery Operating Systems
– Compatible Equipment: Compatible with corresponding host operating systems, supporting in-situ non-destructive replacement.
– Main body material: High-strength thickened steel plate, resistant to bending and torsion, impact-resistant, and not easily deformed.
– Manufacturing process: integral welding, stress relief, weld flaw detection, precision hole alignment
– Core functions: extension and retraction operation, assisted excavation, linkage transmission, ensuring operational accuracy and efficiency.
– Load-bearing performance: Strong resistance to impact loads, uniform bending and elongation stress, and no bending deformation under heavy loads.
– Structural characteristics: Reinforced cavity structure, balanced rigidity, fatigue and torsion resistance.
– Hinge precision: Original factory standard hole positions, precise alignment, and reasonable pin fit clearance.
– Damage resistance characteristics: The weld is strong and crack-resistant, the plate surface is wear-resistant and fatigue-resistant, and it is suitable for high-frequency continuous operation.
– Environmentally resistant: Rust-proof, wear-resistant, and temperature-resistant, suitable for complex and heavy-duty outdoor working conditions.
– Assembly characteristics: Original factory assembly standard size, universally compatible parts, no modification required.
– Applicable working conditions: heavy-duty excavation, high-frequency bending and stretching, continuous construction, and impact operation scenarios.
– Service life: The structure is stable and fatigue-resistant, and it is not prone to cracking or deformation failure during long-term operation.

The SSY009581788 original stick assembly boasts high rigidity, crack resistance, wear resistance, precise linkage, and stable operation, making it suitable for heavy-duty construction scenarios in engineering machinery. It can improve issues such as stick deformation, hole wear, weld cracking, operational vibration, and weak digging, stabilizing equipment operating accuracy and construction efficiency, reducing downtime, and lowering overhaul and maintenance costs. It is suitable for equipment refurbishment, routine maintenance, and batch assembly.

Get a personalized quote now

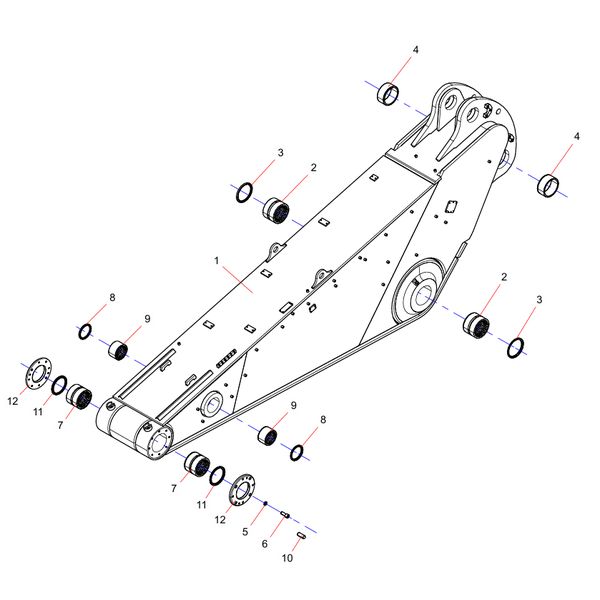

1 SSY009581788 Stick Assembly
2 SSY004649252 Bushing 170×200×140
3 SSY004575035 Butter Ring 170X200X10
4 SSY004685423 Bushing 170×195×84
5 24000513 Spring Washer
6 A210204000337 Screws
7 SSY004649246 Bushing 160×190×140
8 SSY004574941 Butter Ring 130X155X10
9 SSY004649248 Bushing 130×155×90
10 SSY004681291 Positioning pin
11 SSY004575032 Butter Ring 160X190X10
12 SSY004649245 retaining ring

*For other spare parts procurement needs, please contact us!
