SSY009353322 Adjustment Plate Sany SY1350C1C3KH Tracked hydraulic excavator spare parts

SSY009353322 Adjustment Plate Sany SY1350C1C3KH Tracked hydraulic excavator spare parts

The SSY009353322 adjustment plate is a custom-made leveling and positioning accessory for engineering machinery. It is primarily used for the installation of equipment components, elevation correction, angle adjustment, and positioning at support joints. It features precise leveling, strong load-bearing capacity, wear resistance, and easy installation. It is suitable for various scenarios such as mines, construction sites, and bridges. It can fill gaps and correct deviations through a precision wedge or flat plate structure, preventing component misalignment, uneven stress, and loosening. It adapts to the equipment installation layout, ensuring tight component connections and stable operation.
As the core “precision adjustment unit” for leveling and positioning engineering machinery components, this product relies on high-precision machining technology and high-quality material ratio to achieve precise adjustment and stable positioning of component elevation and angle. It has the functions of leveling, positioning and load-bearing. The material is corrosion-resistant and durable, with outstanding load-bearing performance. It is easy to install and maintain, and complies with the industry standards GB/T 20688.4 and GB/T 3325-2024. It is a high-quality original part for repair and replacement and bulk stocking, and is widely used in engineering machinery after-sales service, complete machine matching and spare parts procurement.

【Core Technical Parameters】

— Product Model: SSY009353322
— Product Type: Adjustment Plate (Original Equipment Manufacturer, Core Component for Leveling, Positioning, and Load Bearing in Engineering Machinery)
— Compatible models: Sany, XCMG, Caterpillar and other construction machinery, suitable for the installation of components, leveling and positioning of bearing joints and replacement of equipment such as excavators, loaders, cranes and bridge bearings.
— Material: High-strength Q355B carbon structural steel, precision CNC milling/lathe machining, surface hot-dip galvanizing or epoxy zinc-rich primer anti-corrosion treatment, high compressive strength, weather resistance and aging resistance, wear resistance and corrosion resistance, suitable for outdoor and dusty and humid working conditions on construction sites.
— Operating temperature range: -40°C to +100°C (wide temperature stability, no brittleness at low temperatures and no deformation at high temperatures, suitable for various engineering installation environments).
— Structural specifications: Wedge/flat plate structure (single-slope and double-slope wedges can be customized as needed, with a slope of 1%~5%). The structure is compact, with high flatness, uniform interfaces, and fits the original factory installation layout. It can accurately fill gaps, correct slopes, and achieve uniform stress.
— Leveling and load-bearing performance: Leveling accuracy ≤0.1mm, flatness ≤1mm, can withstand static and dynamic load impacts of equipment, load-bearing strength ≥30MPa, firmly positioned without deviation, can effectively disperse the force on components, avoid local stress concentration, and protect connecting components.
— Dimensions: Fits original factory installation positions, tolerance grade IT7-IT8, thickness 10-50mm, length and width 300×300~1000×1000mm, shape and mounting hole positions fully match the original factory standard, no modification required, and size and slope can be customized as needed.
— Installation method: bolt anchoring or intermittent welding installation, compatible with original brackets and connecting stations, easy to install, can be repeatedly disassembled, easy to maintain and adjust, the connection is firm and not easy to loosen, and the fit is tight without gaps.
— Protection performance: IP65 protection level, waterproof, dustproof and oil-proof, salt spray resistant for ≥96 hours, corrosion resistant, vibration resistant and wear resistant, suitable for dusty and humid working conditions, sand and gravel friction, high and low temperature alternation, etc., not easy to rust or deform.
— Service life: ≥5 years under normal conditions, ≥3 years under harsh conditions. Stable leveling and positioning performance. Wear and corrosion resistance is 40% higher than that of ordinary adjustment plates, reducing component connection failures and maintenance costs.

Regardless of the application scenario, such as construction sites or bridges, this product can achieve precise leveling and stable positioning of engineering machinery components. It is load-bearing, corrosion-resistant, and provides accurate leveling, ensuring tight connection and uniform force distribution of components. This reduces the equipment failure rate caused by misalignment or loosening, making it the preferred original accessory for replacement adjustment plates.

Get a personalized quote now

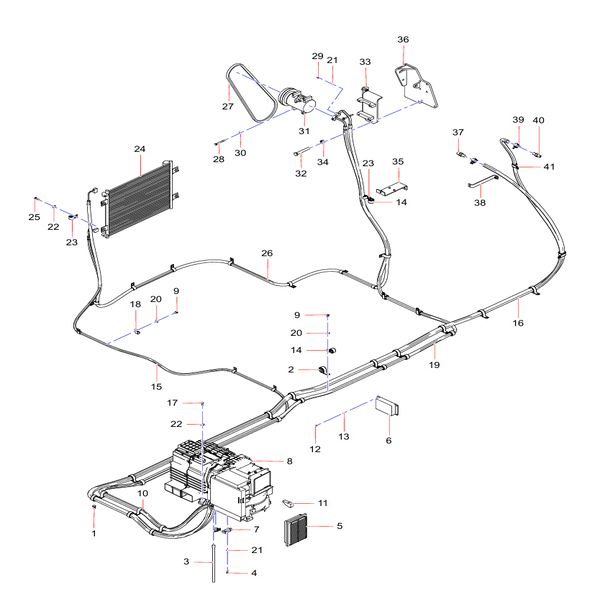

21 24000632 Washer
22 60060565 Washer
23 60086354 Wire clamp
24 141502000213A Condenser Assembly
25 A210111000293 Bolt
26 151099000081B Exhaust hose
27 120701080027A Automotive V-belt
28 A210108000097 Bolt
29 A210111000082 Bolt
30 24000633 Washer
31 141502000336B Compressor
32 A210111000364 Bolt
33 SSY009353322 Adjustment Plate
34 A210307000028 Nut
35 SSY005202197 Fixed Bracket II
36 SSY009389577 Compressor mounting bracket
37 14456096 Return water pipe connector
38 SSY004859193 Fixed Bracket I
39 60166393 Steel strip elastic clamp
40 SSY004859190 Water intake pipe connector
41 60086355 Wire clamp

*For other spare parts procurement needs, please contact us!
