B230103000075 Hose Assembly Sany SY1350C1C3KH Tracked hydraulic excavator spare parts

B230103000075 Hose Assembly Sany SY1350C1C3KH Tracked hydraulic excavator spare parts

The B230103000075 hose assembly is a core integrated conveying component of the hydraulic system for Sany construction machinery. Specifically designed for Sany excavators and loaders, it is compatible with SY155, SY225, and SY395 series models and similar hydraulic pipelines, serving as the “integrated conveying hub” of the hydraulic circuit. Its core function is to precisely assemble the hose and connector into a single unit, achieving integrated connection of all core components of the hydraulic system and efficiently conveying hydraulic media. Through integrated molding technology and stringent quality control, it effectively solves the pain points of traditional hose and connector connections, such as looseness, leakage, and cumbersome assembly, reducing failure and maintenance costs, making it a preferred maintenance accessory.
This product adopts a dedicated SANY adapter design with a dimensional error within ±0.2mm. The hose diameter and connector specifications are precisely matched. The one-piece molding eliminates the need for on-site assembly, making installation convenient and allowing for quick replacement without special tools, significantly saving maintenance time. The structure has been mechanically optimized to withstand a nominal pressure of 31.5MPa. It has excellent vibration resistance, tensile strength, and impact resistance, preventing hose and connector detachment and bursting, ensuring stable media delivery, adapting to complex equipment operating conditions, reducing unplanned downtime losses, and suitable for harsh operating environments.

Core technical parameters:

– Product Model: B230103000075
– Compatible brands: Sany and similar compatible construction machinery
– Compatible models: SANY SY155, SY225, SY395 series excavators and loaders
– Implementation standards: GB/T 3683-2011, GB/T 10544-2013 (Complies with national and industry standards, quality is guaranteed)
– Nominal pressure: 31.5MPa (High pressure resistant, suitable for the high pressure requirements of hydraulic systems in engineering machinery)
– Hose diameter: Φ16mm (precise fit to ensure smooth media delivery)
– Fitting specifications: G1/4-M16 (Matching fittings for precise pipe connection and seamless adaptation)
– Rated flow rate: 70L/min (smooth delivery, low flow resistance, and does not affect the power output of the hydraulic system)
– Main structure: Oil-resistant rubber inner layer + high-strength steel wire braided layer + wear-resistant and corrosion-resistant rubber outer layer + stainless steel connector (integrated molding)
– Operating temperature: -40℃~120℃ (wide temperature range, adaptable to various regions and working conditions)
– Dimensional tolerance: ±0.2mm (precise specifications, compatible with SANY hydraulic pipeline integrated connection)
– Bending radius: ≥80mm (Excellent flexibility, adaptable to pipeline deformation during equipment operation)
– Suitable for: Hydraulic circuits in equipment such as Sany excavators and loaders, used for integrated connection of various components, hydraulic medium transportation, daily maintenance and fault replacement.

The B230103000075 hose assembly has undergone multiple tests for pressure resistance, oil resistance, aging resistance, and vibration resistance, meeting SANY’s accessory standards. Its integrated design makes installation convenient and can directly replace old assemblies, significantly improving operation and maintenance efficiency, reducing loose connections, media leakage, and downtime losses, and lowering overall operation and maintenance costs.

Get a personalized quote now

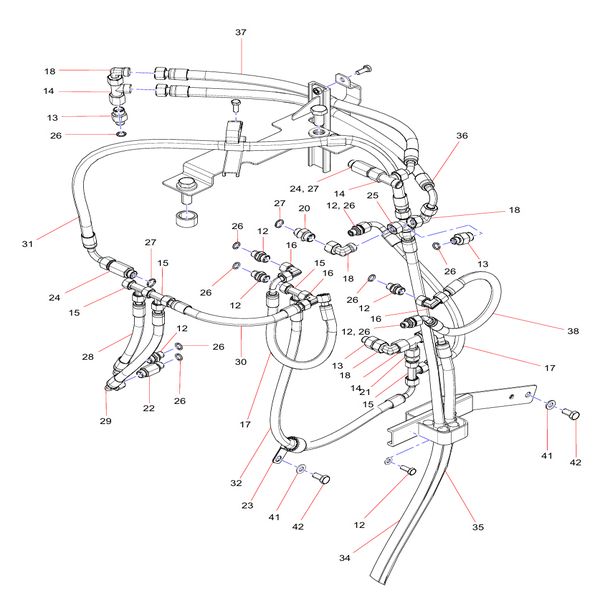

12 A820205002445 G1/4-M16 connector
13 10125208 G1/4-M18 connector
14 B210780000016 Tee Combination Fitting
15 B210780000015 Tee Combination Fitting
16 B210780000636 Right-angle combination connector
17 B230103001233 Rubber hose
18 B210780000024 Right-angle combination connector
20 A820205000961 G3/8-M18 connector
21 B210780000683 Butt-fit reducing joint
22 13106800 G1/4-M16 Extended Connector
23 60086355 Wire clamp
24 SSY004728129 G3/8-M18 Extension Connector
25 B210780000019 Tee Combination Fitting
26 B230101000047 O-ring
27 B230101000049 O-ring
28 A831313025000 Rubber Hose
29 B230103003611 Rubber hose
30 B230103000075 Hose Assembly
31 151004110253A Hose Assembly
32 B230103000589 Rubber hose
34 151004110136A Hose Assembly
35 151004110146A Hose Assembly
36 B230103001352 Rubber Hose
37 B230103006585 Rubber hose
38 151003160008 Rubber hose
41 21001328 Washer
42 A210111000012 Bolt

*For other spare parts procurement needs, please contact us!
