152300000146A010 Coil Connector Assembly Sany SY1350C1C3KH Tracked hydraulic excavator spare parts

152300000146A010 Coil Connector Assembly Sany SY1350C1C3KH Tracked hydraulic excavator spare parts

The 152300000146A010 coil connector assembly is a core connection and transmission component for solenoid valves in Sany construction machinery. Specifically designed for Sany excavators and loaders, it is compatible with SY135, SY215, and SY365 series models and can be used with similar solenoid valve coils. It serves as the “signal transmission hub” for the solenoid valve. Its core function is to connect the solenoid valve coil to the control circuit, ensuring stable electrical signal transmission, proper coil energization, and precise solenoid valve operation. Through precision assembly and stringent quality control, it effectively solves the pain points of traditional connector assemblies, such as poor contact, unstable conductivity, and poor corrosion resistance, reducing failure and maintenance costs. It is the preferred accessory for maintenance.
This product adopts a dedicated SANY adapter design with a size error within ±0.1mm, precise interface specifications, and mounting hole positions that conform to national standards. It can be plugged in and can be quickly assembled and replaced without special tools. The structure has been mechanically optimized, with excellent vibration and shock resistance, which can avoid loose joints and poor contact, ensure stable transmission of electrical signals, prevent solenoid valve malfunction, reduce unplanned downtime losses, and adapt to harsh working conditions.

Core technical parameters:

– Product Model: 152300000146A010
– Compatible brands: Sany and similar compatible construction machinery
– Compatible models: SANY SY135, SY215, SY365 series excavators and loaders
– Implementation standards: GB/T 14048.1-2012, JB/T 9665-2013 (Complies with national and industry standards, quality guaranteed)
– Rated voltage: 24V DC (suitable for engineering machinery, stable conductivity)
– Interface specification: Plug-in type (precise fit, convenient connection, can be adapted to other specifications as needed)
– Contact resistance: ≤0.01Ω (good contact, low conductivity loss, stable signal transmission)
– Main body material: Brass (tin-plated) (Excellent conductivity, corrosion and wear resistance, vibration resistance, suitable for complex working conditions)
– Sealing material: Fluororubber (FKM) (tight seal, oil and aging resistant, prevents dust and oil intrusion)
– Operating temperature: -40℃~100℃ (wide temperature range, adaptable to various regions and working conditions)
– Dimensional tolerance: ±0.1mm (precise specifications, compatible with SANY solenoid valve coil connection)
– Suitable for: Solenoid valves in equipment such as Sany excavators and loaders, used for coil-to-circuit connection, electrical signal transmission, routine maintenance, and fault replacement.

The 152300000146A010 coil connector assembly has undergone multiple tests for conductivity, sealing, and vibration resistance, and meets SANY’s accessory standards. It is easy to install and can be directly replaced, which greatly improves operation and maintenance efficiency, reduces poor contact, signal interruption and downtime losses, and lowers overall operation and maintenance costs.

Get a personalized quote now

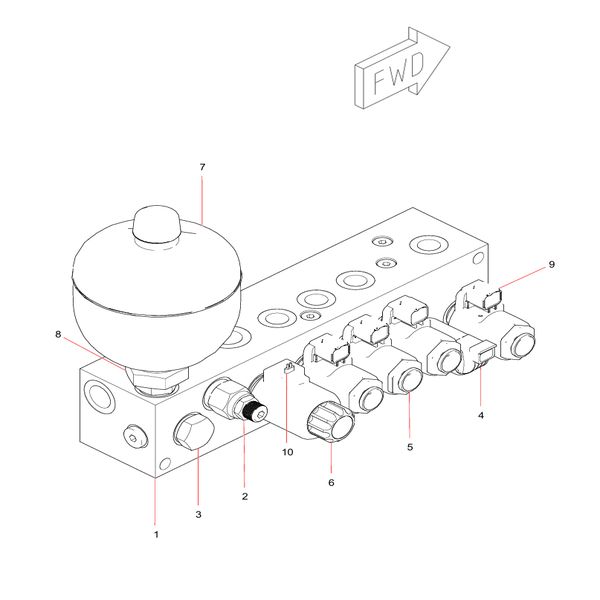

1 Valve block
2 152300000146A002 Relief valve
3 152300000146A003 Check valve
4 152300000146A004 Proportional pressure reducing valve
5 152300000146A005 Solenoid valve body
6 152300000146A006 Solenoid valve body
7 152300000146A007 Accumulator
8 152300000146A008 Transition Joint
9 152300000146A009 Coil
10 152300000146A010 Coil Connector Assembly

*For other spare parts procurement needs, please contact us!
