130901000156A017 Front Lower Protective Net Assembly Sany SY1350C1C3KH Tracked hydraulic excavator spare parts

130901000156A017 Front Lower Protective Net Assembly Sany SY1350C1C3KH Tracked hydraulic excavator spare parts

This product is an original factory compatible accessory, precisely matching the front lower part of the cab of SANY SY55/65/75/135/215/365 excavators and SCC750 crawler cranes, pump trucks, etc. Utilizing precision CNC machining, robotic full welding, and high-temperature powder coating processes, it fits the installation position perfectly, with pre-drilled standard mounting holes, allowing for quick and easy fixing without additional processing. It can withstand bumpy, dusty, and debris-filled working conditions, effectively preventing stones, debris, and other foreign objects from impacting the front of the equipment, protecting the cab and internal components, and balancing protection with ventilation.
The product strictly adheres to industry standards, ensuring reliable quality. It is made of Q235 high-strength carbon steel (mesh + frame, with powder-coated surface protection), and undergoes precision cutting, welding reinforcement, and high-temperature powder coating treatment. It is impact-resistant, deformation-resistant, wear-resistant, and corrosion-resistant, making it suitable for engineering sites, mines, and other scenarios. It solves pain points such as loosening of protective netting, detachment of welds, easy rusting, and protective failure, extending the service life of equipment and helping equipment operate safely and efficiently. It complies with the GB/T 31439-2015 safety standard for protective netting.

【Core Technical Parameters】

– Product Model: 130901000156A017
– Product Type: Front Lower Guard Net Assembly (Original Equipment Manufacturer Fitting, Dedicated for Engineering Equipment Cabs)
– Compatible models: SANY SY55/65/75/135/215/365 excavators, SCC750 crawler cranes, concrete pump trucks, etc.
– Material: Q235 high-strength carbon steel (mesh + frame, surface powder coating protection, corrosion resistant, aging resistant, impact resistant)
– Operating temperature range: -30°C to +80°C (does not crack or delaminate under extreme temperatures, exhibiting strong stability)
– Mesh specifications: wire diameter 5.0-6.0mm, mesh size 40×40mm, balancing protection and permeability.
– Frame dimensions: Precisely fits the lower front section of the original cab (seamless fit, matching installation points)
– Installation method: Screw fixing (compatible with M12 interface, with anti-loosening washers, secure fixing, and strong vibration resistance)
– Impact resistance: Can withstand 80J impact without deformation or weld detachment; weld tensile strength ≥200MPa
– Protective performance: Waterproof, dustproof, wear-resistant, and resistant to debris impact, effectively preventing the intrusion of foreign matter and protecting equipment components.
– Service life: ≥5 years under normal conditions, ≥3 years under harsh conditions, meets salt spray test standards, and is not prone to rust or plastic delamination.
– Implementation Standard: Complies with GB/T 31439-2015 and the Safety Performance Standard for Engineering Equipment Protective Nets
– Process characteristics: precision cutting, robotic full welding, high-temperature powder coating, accurate dimensions, strong welds, and excellent protection.

Whether in bumpy environments, dusty mines, or heavy-duty operations, this product reliably provides frontal protection, preventing debris from entering and damaging equipment, and reducing maintenance costs. It is an original manufacturer’s fit, with guaranteed quality and after-sales service. Easy to install and remove, it is a high-quality front underbody protection assembly for cabs that combines practicality and safety.

Get a personalized quote now

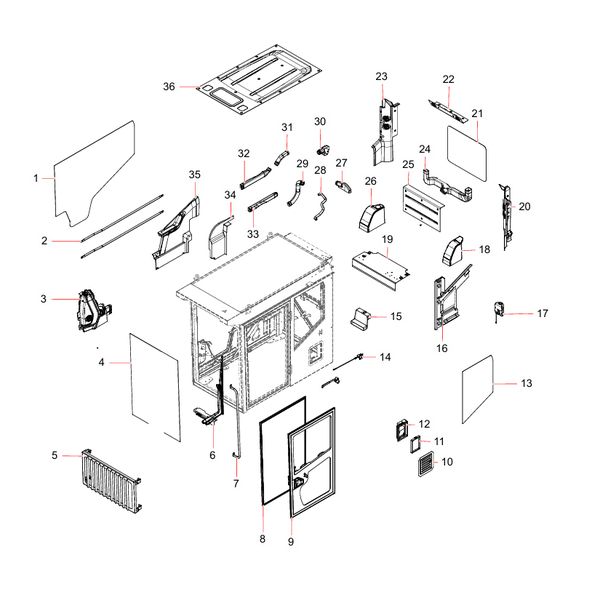

1 130901000156A002 Right side glass
2 130901000156A028 Right-side handrail of the driver’s cab
3 130901000156A024 Front control box assembly
4 130901000156A006 Front windshield
5 130901000156A017 Front lower guardrail assembly
6 130901000156A022 Windshield wiper assembly
7 130901000156A012 Handrail outside the driver’s cab
8 130901000156A008 Door sealing strip
9 130901000156A015 Door assembly (without sliding window)
10 130901000156A023 Small side door assembly
11 130907001013A External air duct filter element pressure plate
12 130901000156A029 External air duct assembly
13 130901000156A004 Left rear window
14 130901000156A014 Rear bumper lock assembly
15 130907000123A Foot blowing duct
16 130901000156A020 Left side interior trim assembly
17 61003850 Kettle
18 13122334 Left storage box assembly

*For other spare parts procurement needs, please contact us!
