Dust ring XCMG Wheel Dozer DL210KN spare parts

Part name:Dust ring

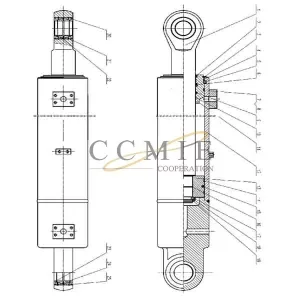

Unit name:Lifting cylinder
Applicable Models:Wheel Dozer DL210KN

*Due to the wide variety of products, the pictures displayed may not match the actual ones, and the part numbers are mainly used.

Item No./Factory drawing number/Part Name/Remark

1 Piston rod
2 Dust ring d90 CK-090
3 Shaft retaining ring d150 GB894.1-86
4 retaining ring
5 Card Key
6 Shaft seal ring d90 CKG-090
7 Retaining ring 160×4.5×2
8 O-ring 150×5.3 GB3452.1-82
9-axis step seal d90 CKS-090
10 Siloh ring for shaft
11 Guide sleeve
12 Cylinder
13 Piston
14 holes with Sly ring
15 Grid Ring D160 CKW-160
16 O-ring 60×5.3 GB3452.1-82
17 Axis key
18 card keycap
19 Shaft retaining ring d70 GB894.1-86
20 Dust ring
21 retaining ring for hole d90 GB893.1-86
22 Spherical bearing GE60ES GB304.5-81
23 Dust ring
24 Spherical bearing GE70ES GB304.5-81
25 hole retaining ring d105

==========================
