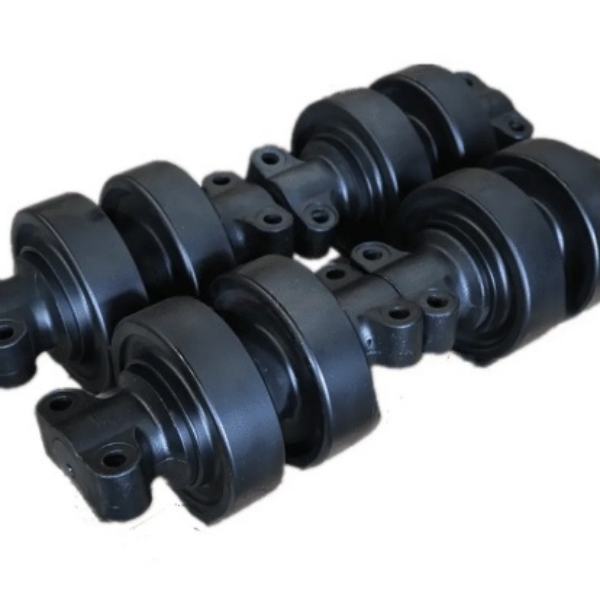

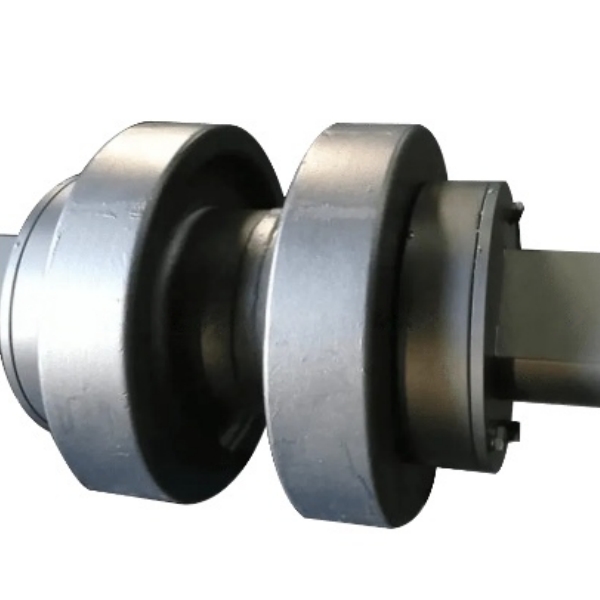

SANY and XCMG Crawler Crane Track Roller

SANY and XCMG Crawler Crane Track Roller

Material:

40MN2: C%–0.37-0.44, Mn%–1.4-1.8 Si%–0.17-0.37
42CrMo: C%–0.38-0.45,Mn%–0.5-0.8 Cr%–0.90-1.20 Mo%–0.15-0.25, Si%–0.17-0.37

Quenching and tempering hardness: HB250-300
Working Surface: HRC50-55
Quenching Depth: 4-6mm

Specifications:

We supply track rollers for the following SANY & XCMG crawler cranes:

SANY: SCC8200 SCC8100 SCC8300 SCC10000 SCC1600D SCC500B SCC500C SCC500D

SCC1500D SCC1800 SCC2600A SCC3000WE SCC4000E SCC1000D SCC1250 SCC1500CC

SCC5000WE SCC6500E SCC7500 SCC500E SCC550C SCC600C SCC750C SCC800C

XCMG: QUY50 QUY55N QUY80 QUY100 QUY150 QUY250

Many types of track rollers are available for those SANY & XCMG crawler cranes.

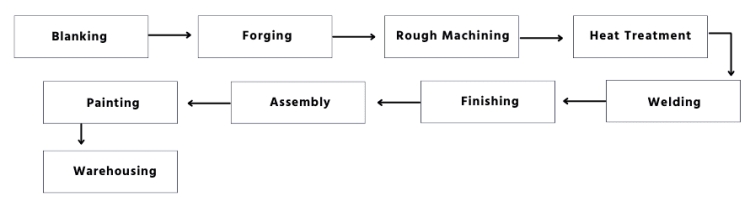

• Cut the round steel on the sawing machine according to the size of the drawing
• Forging and normalizing according to the blank drawing
• Roughing the parts
• The rough-processed products are tempered, shot blasted, and medium-frequency according to technical requirements (inspection of the Leeb hardness tester)
• Heat treatment of the half-wheel body for welding
• Finishing, drilling, and tapping after welding
• The finished wheel, end cover, shaft, and other accessories for cleaning, assembly, rolling test, pressure test, oil injection
• Spray the assembled roller

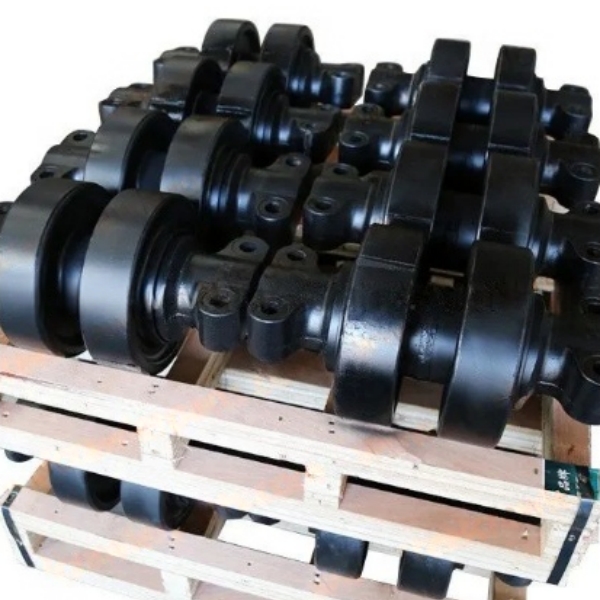

• Pack the painted track rollers into the warehouse
