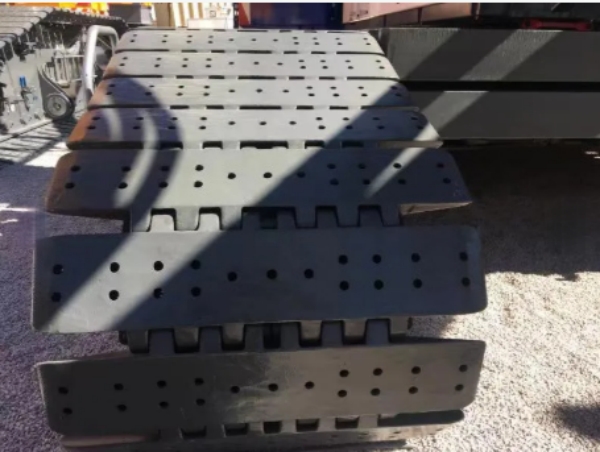

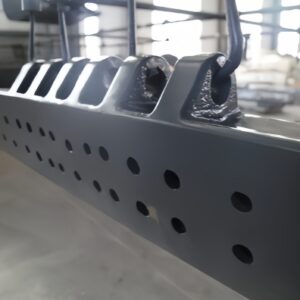

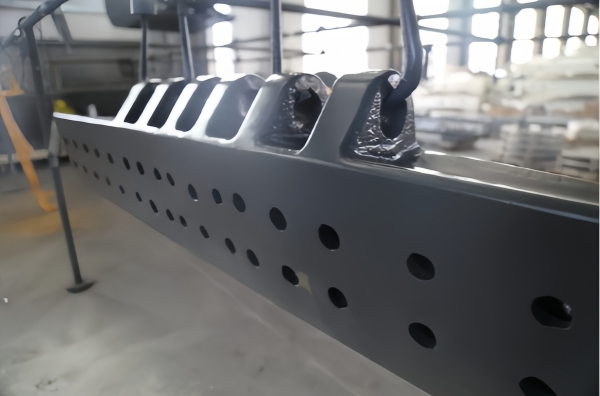

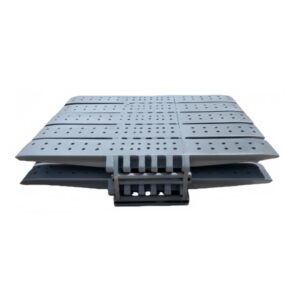

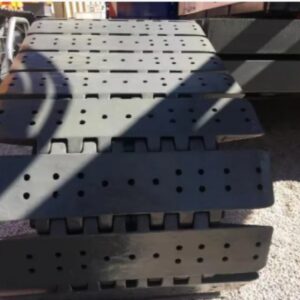

Liebherr Crawler Crane Track Shoe
A: 50-80 Ton: Material: 31SiMn2: C%–0.27-0.34 Si%–0.6-0.9, Mn%–1.40-1.80
B: 100 Ton-300Ton: Material: 28CrMnMo: C%–0.24-0.32, Cr%–0.7-0.9, Mn%—0.8-1.1, Mo%–0.25-0.4
C: 300 Ton above: Material: 30NiCrMo: C%–0.27-0.33, Cr%–0.80-1.20, Ni%–3.0-4.0, Mo%–0.30-0.60, Mn%–0.60-1.0
Tempering Hardness: HRC25.5-32.5
Share:
Product Details:
Liebherr crawler crane Undercarriage accessories to provide models
HS885HD, LR1600, LR1400, LR1280, LR1200, LR1100, LR11000
Material:
A: 50-80 Ton: Material: 31SiMn2: C%–0.27-0.34 Si%–0.6-0.9, Mn%–1.40-1.80

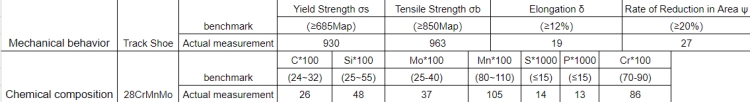

B: 100 Ton-300Ton: Material: 28CrMnMo: C%–0.24-0.32, Cr%–0.7-0.9, Mn%—0.8-1.1, Mo%–0.25-0.4
C: 300 Ton above: Material: 30NiCrMo: C%–0.27-0.33, Cr%–0.80-1.20, Ni%–3.0-4.0, Mo%–0.30-0.60, Mn%–0.60-1.0
Tempering Hardness: HRC25.5-32.5
Specifications:

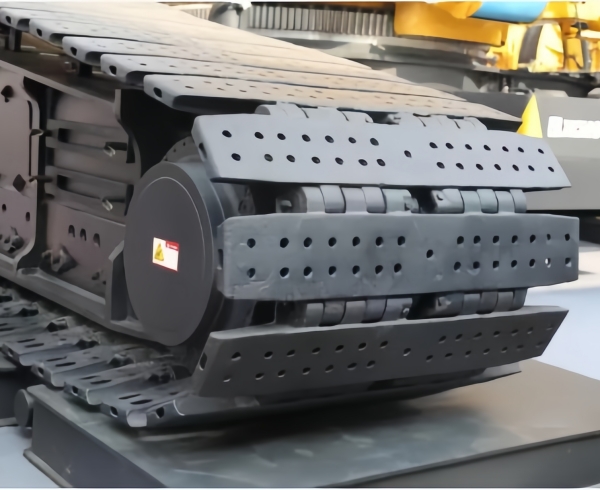

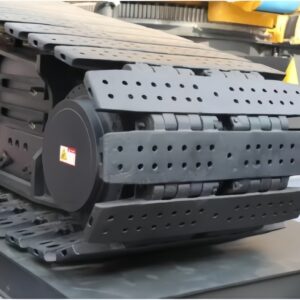

We supply track shoes for the following Liebherr crawler crane undercarriage.
LR1650 HS852HD HS853HD HS855HD HS871HD HS872 HS873HD HS875HD HS882HD HS883HD
HS885HD LR1600 LR1400 LR1280 LR1750 LR11350
Many types of track shoes are available for those Liebherr crawler cranes.
- The mold of Liebherr undercarriage is usually made of wood mold or aluminum film (we use aluminum film), aluminum film is good; the mold is usually made according to the sample or production drawings.
- The shape is made of sand according to the mold
- Pour the molten steel into the sand mold (first analyze the chemical composition of the furnace before the spectrometer)
- The mechanical properties of the track shoe for Liebherr undercarriage after heat treatment, usually using CSS44300 universal tensile testing machine
- Surface cleaning refers to steam-cutting wind gun gates, risers, and sand cleaning sand cores with windguns
- Normalizing is mainly to eliminate internal stress and reduce the hardness of the workpiece.
- Surface treatment refers to the sharp corners, burrs, etc. remaining on the surface after the work workpiecepiece is normalized.
- Quenching and tempering are mainly to improve the comprehensive mechanical properties of the workpiece
- Shot blasting refers to the shot blasting after the workpiece is quenched and tempered to achieve a smooth surface.
- The contact position between the track shoe and the wheel body tread and the intermediate stage quenching treatment at the boss
- Processing according to the drawings
- Grinding is to polish the Liebherr track shoes after quenching or quenching, and the smoothing needs to be smoothed.
- Check whether the polished track shoes are qualified again.
- Qualified track shoes to be painted.
- The Liebherr track shoes are packed and stored in the warehouse.

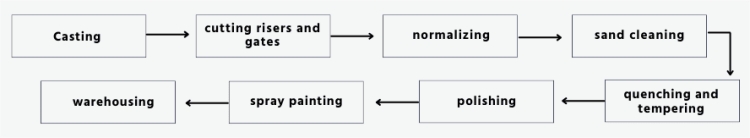

Process:
