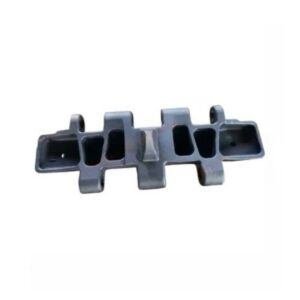

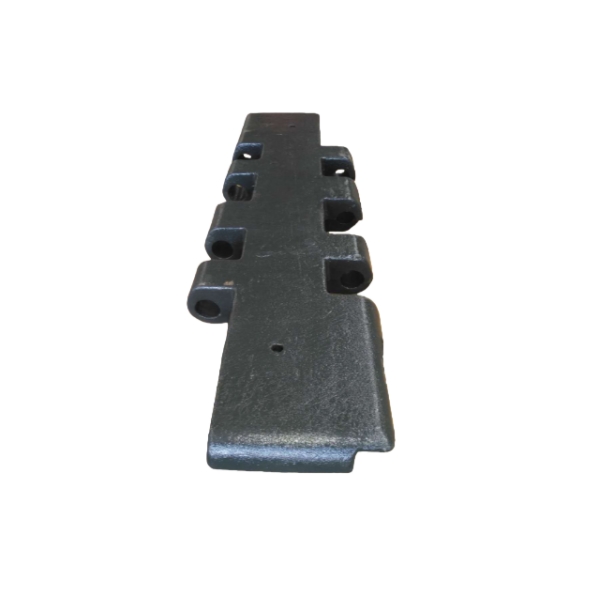

KOBELCO Crawler Crane Track Shoe

KOBELCO Crawler Crane Track Shoe

KOBELCO crawler crane Undercarriage accessories to provide models

P&H330, P&H335, P&H5035, P&H5045, P&H5100, P&H7035, P&H7045, P&H7055, P&H7065, P&H7080, P&H7150, P&H7250, BM500, BM700, BM800, CKE600, CKE700, CKE800, CKE900, CKE1000, CKE1800, CKE2500

Material:

A: 50-80 Ton: Material: 31SiMn2: C%–0.27-0.34  Si%–0.6-0.9, Mn%–1.40-1.80

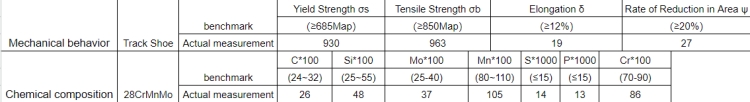

B: 100 Ton-300Ton: Material: 28CrMnMo: C%–0.24-0.32, Cr%–0.7-0.9, Mn%—0.8-1.1, Mo%–0.25-0.4

C: 300 Ton above: Material: 30NiCrMo: C%–0.27-0.33, Cr%–0.80-1.20, Ni%–3.0-4.0, Mo%–0.30-0.60, Mn%–0.60-1.0

Tempering Hardness: HRC25.5-32.5

Specifications:

We supply track shoes for the following KOBELCO crawler crane.

BM500 BM600 BM650 BM700 BM800 BM900 BM1200 CKE600 CKE700 CKE800

CKE900 CKE1000 CKE1800 CKE2500 CKE2500-2

Many types of track shoes are available for those KOBELCO crawler cranes.

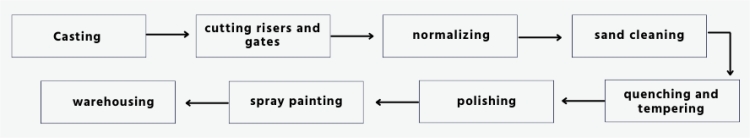

• The mold is usually made of wood mold or aluminum film (we use aluminum film), aluminum film is good; the mold is usually made according to the sample or production drawings.
• The shape is made of sand according to the mold
• Pour the molten steel into the sand mold (first analyze the chemical composition of the furnace before the spectrometer)
• The mechanical properties of the track shoe after heat treatment, usually using CSS44300 universal tensile testing machine
• Surface cleaning refers to steam-cutting wind gun gates, risers, and sand cleaning sand cores with windguns
• Normalizing is mainly to eliminate internal stress and reduce the hardness of the workpiece.
• Surface treatment refers to the sharp corners, burrs, etc. remaining on the surface after the work workpiecepiece is normalized.
• Quenching and tempering are mainly to improve the comprehensive mechanical properties of the workpiece
• Shot blasting refers to the shot blasting after the workpiece is quenched and tempered to achieve a smooth surface.
• The contact position between the track shoe and the wheel body tread and the intermediate stage quenching treatment at the boss
• Processing according to the drawings
• Grinding is to polish the track shoes after quenching or quenching, and the smoothing needs to be smoothed.
• Check whether the polished track shoes are qualified again.
• Qualified track shoes to be painted.

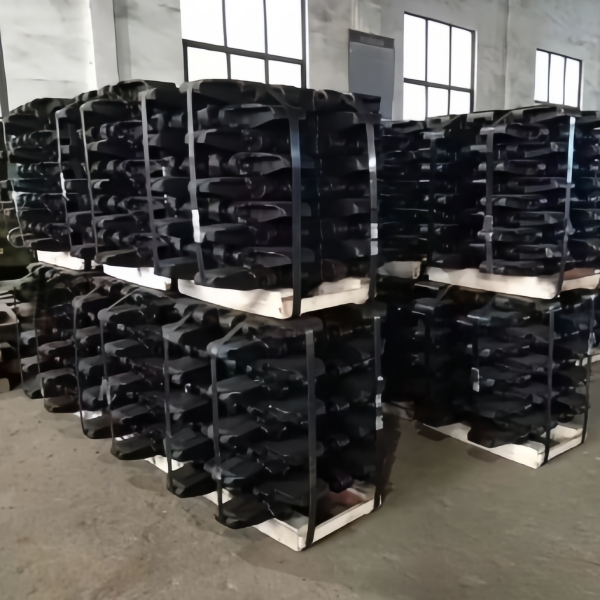

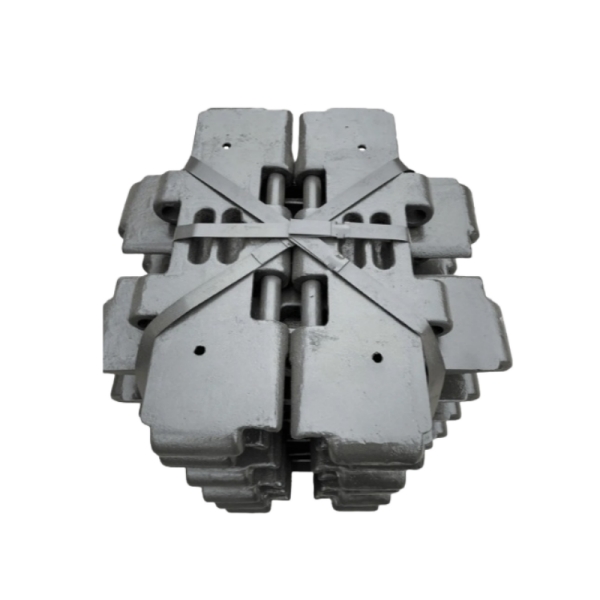

• The product is packed and stored in the warehouse.
