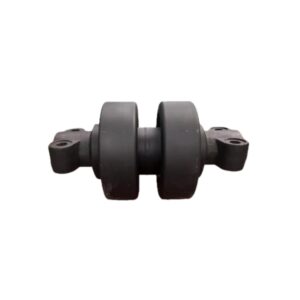

KOBELCO Crawler Crane Track Roller

KOBELCO Crawler Crane Track Shoe

KOBELCO crawler crane Undercarriage accessories to provide models

P&H330, P&H335, P&H5035, P&H5045, P&H5100, P&H7035, P&H7045, P&H7055, P&H7065, P&H7080, P&H7150, P&H7250, BM500, BM700, BM800, CKE600, CKE700, CKE800, CKE900, CKE1000, CKE1800, CKE2500

Material:

40MN2: C%–0.37-0.44, Mn%–1.4-1.8 Si%–0.17-0.37
42CrMo: C%–0.38-0.45,Mn%–0.5-0.8 Cr%–0.90-1.20 Mo%–0.15-0.25, Si%–0.17-0.37

Quenching and tempering hardness: HB250-300
Working Surface: HRC50-55
Quenching Depth: 4-6mm

Specifications:

We supply track rollers for the following KOBELCO crawler crane:

CKE1800 CKE2500 CKE2500-2 CKE900 CKE1000 CKE600 CKE700 CKE800

BM500 BM600 BM650 BM700 BM800 BM900 BM1200

Many types of track rollers are available for those KOBELCO crawler cranes.

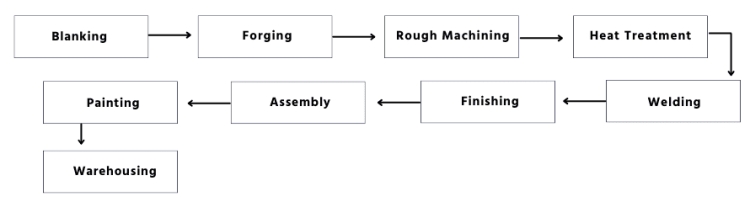

• Cut the round steel on the sawing machine according to the size of the drawing
• Forging and normalizing according to the blank drawing
• Roughing the parts
• The rough-processed products are tempered, shot blasted, and medium-frequency according to technical requirements (inspection of the Leeb hardness tester)
• Heat treatment of the half-wheel body for welding
• Finishing, drilling, and tapping after welding
• The finished wheel, end cover, shaft, and other accessories for cleaning, assembly, rolling test, pressure test, oil injection
• Spray the assembled roller

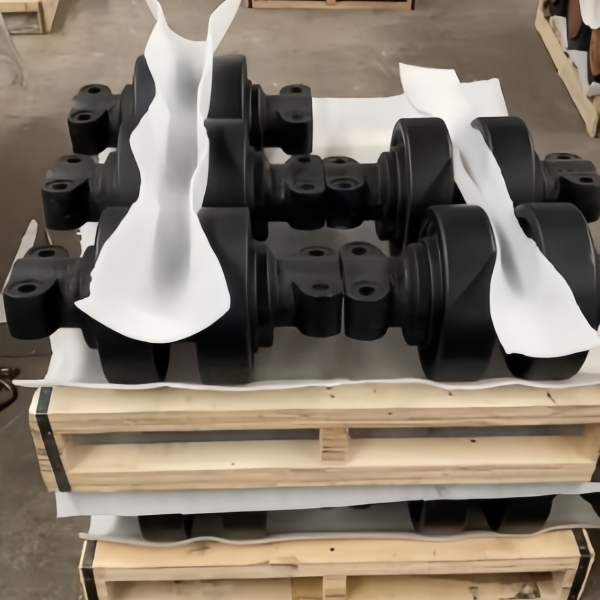

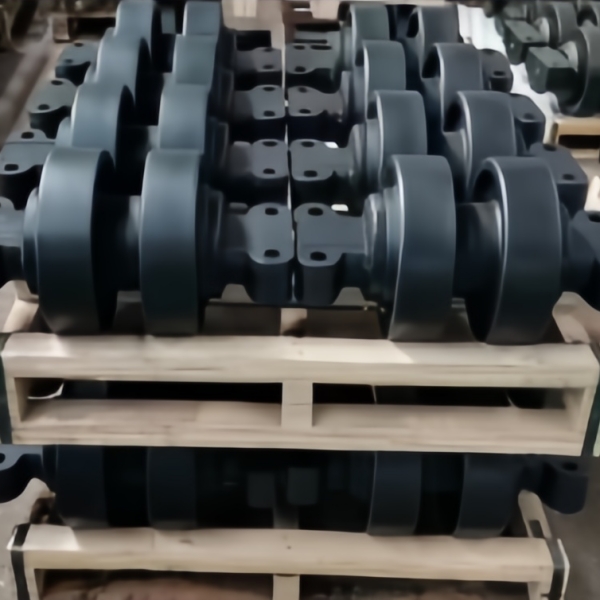

• Pack the painted track rollers into the warehouse
