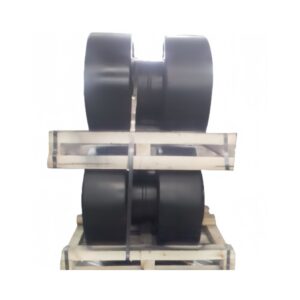

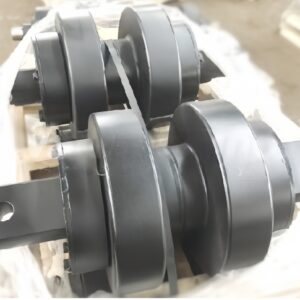

DEMAG Crawler Crane Track Roller

DEMAG Crawler Crane Track Roller

DEMAG crawler crane Undercarriage accessories to provide models

CC1500, CC1800, CC2000, CC2200, CC2500, CC2800, CC4000

Material:

40MN2: C%–0.37-0.44, Mn%–1.4-1.8 Si%–0.17-0.37
42CrMo: C%–0.38-0.45,Mn%–0.5-0.8 Cr%–0.90-1.20 Mo%–0.15-0.25, Si%–0.17-0.37

Quenching and tempering hardness: HB250-300
Working Surface: HRC50-55
Quenching Depth: 4-6mm

Specifications:

We supply track rollers for the following DEMAG crawler crane:

CC2800 CC2000 CC2200 CC2400 CC2500 CC1500 CC1800

Many types of track rollers are available for those DEMAG crawler cranes.

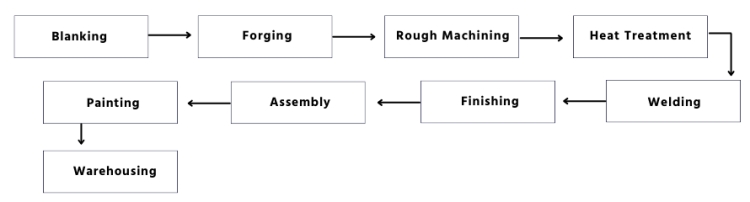

• Cut the round steel on the sawing machine according to the size of the drawing
• Forging and normalizing according to the blank drawing
• Roughing the parts
• The rough-processed products are tempered, shot blasted, and medium-frequency according to technical requirements (inspection of the Leeb hardness tester)
• Heat treatment of the half-wheel body for welding
• Finishing, drilling, and tapping after welding
• The finished wheel, end cover, shaft, and other accessories for cleaning, assembly, rolling test, pressure test, oil injection
• Spray the assembled roller

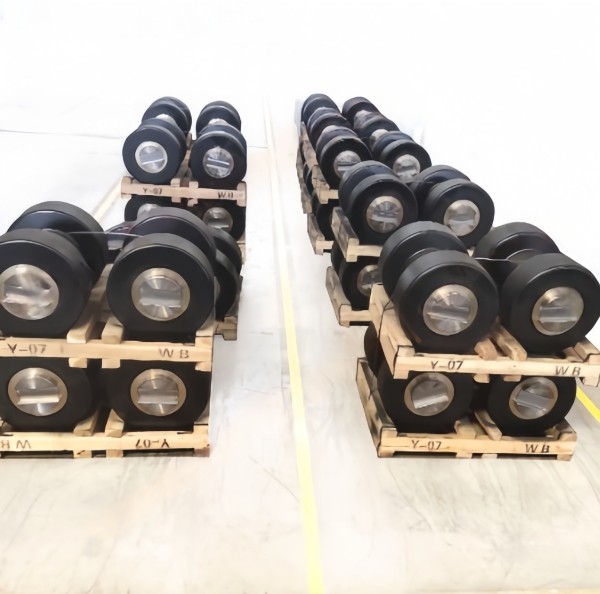

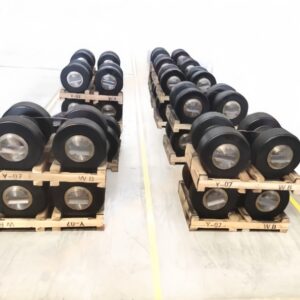

• Pack the painted track rollers into the warehouse

Get a personalized quote now

*For other spare parts procurement needs, please contact us!
