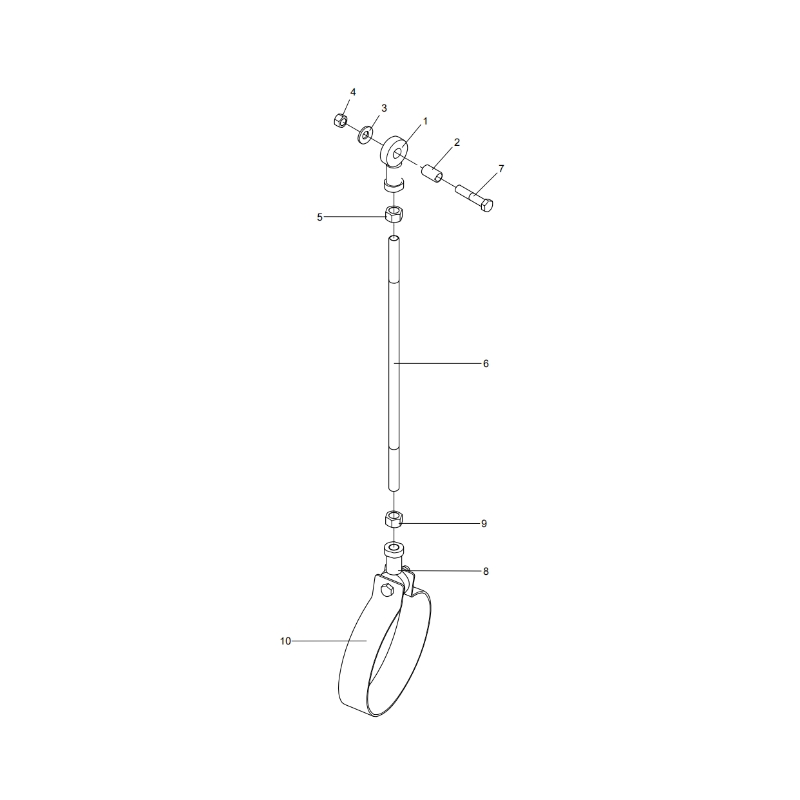

330106962 Intake/Exhaust Bracket Assembly XCMG XDE130 Electric driving dump truck spare parts

As an original equipment manufacturer (OEM) certified component of XCMG, this product precisely addresses industry pain points such as insufficient load-bearing capacity, susceptibility to deformation and corrosion, poor shock absorption, weak installation adaptability, and short service life of ordinary bracket components. It can be precisely positioned and installed according to the intake/exhaust pipe layout of different models, balancing support stability and shock absorption protection, and is suitable for various complex operating scenarios. The product is made of high-strength alloy raw materials and processed through multiple precision processes. Its structural design conforms to the original XCMG intake/exhaust system layout, with stringent dimensional accuracy, and can easily cope with the harsh operating conditions of construction machinery, such as high temperature and dust, heavy oil contamination, alternating high and low temperatures, high frequency vibration, and heavy-load impact.

Core technical parameters

– Product Model: 330106962
– Product Name: Intake/Exhaust Bracket Assembly (XCMG Construction Machinery Specific)
– Material Specifications: The main body is made of high-strength alloy steel (40Cr material), which is tempered to enhance toughness. It is equipped with a temperature-resistant and shock-absorbing rubber sleeve, a wear-resistant nylon bushing, and original factory-specific fasteners. The bracket thickness is 7-20mm, the load-bearing strength is ≥125MPa, and it is precisely matched with the air intake/exhaust pipe installation dimensions of XCMG models.
– Processing technology: raw material forging and purification, CNC precision cutting, precise bending and forming, robot welding reinforcement, surface electrophoretic anti-corrosion passivation, dimension calibration, integrated assembly of shock absorption components, welding without slag inclusions or air holes, smooth surface without burrs, dimension error ≤0.10mm, bracket mounting hole positions are preset according to XCMG original factory standards, no secondary drilling is required.
– Suitable for harsh working conditions such as high temperature and dust, oil and dirt, alternating high and low temperature, high frequency vibration, heavy load impact, etc. It is suitable for the narrow working space of small road rollers and the compact layout of the intake/exhaust system of tractor vehicles. The bracket curvature, mounting hole position and size can be customized according to the specific model to accurately adapt to different specifications of intake/exhaust pipes (diameter 28-145mm).
– Core parameters: Load bearing strength ≥125MPa, tensile strength ≥110MPa, yield strength ≥90MPa, damping coefficient 0.29-0.36, corrosion resistance rating IP67, salt spray test ≥950 hours, high temperature resistance range -45℃~290℃, dimensional error ≤0.10mm, compatible pipe diameter 28-145mm, service life ≥12000 hours.
– Temperature range: -45℃~290℃, suitable for long-term use in both normal temperature intake systems and high temperature exhaust systems. It exhibits excellent creep resistance, thermal shock resistance, and corrosion resistance. It remains free from brittleness, deformation, and corrosion under both high and low temperature conditions, ensuring long-term stable support performance and meeting the operational needs of equipment under all operating conditions.
– Structural features: Integrated structure, combining rigid support and elastic shock absorption. The main body of the bracket is made of high-strength alloy forging, with strong load-bearing capacity, which can effectively fix the air intake/exhaust pipes and prevent pipe displacement and loosening; equipped with temperature-resistant and shock-absorbing rubber sleeves, which can buffer high-frequency vibration of equipment, reduce friction loss between pipes and brackets, and protect the integrity of pipes.
– Installation method: It comes with XCMG original fasteners and uses bolt fixing. It is precisely installed by aligning with the original interface and tightening the fasteners to ensure a firm fixation. No equipment modification is required. It is easy to disassemble and assemble, and facilitates daily inspection, maintenance and parts replacement.
– Service life: ≥12,000 hours under normal operating conditions, 2-year warranty, corrosion rate ≤0.0015mm/year, waterproof, oil-proof and dustproof, no deformation, no rust or breakage after long-term use, and stable support and shock absorption performance.

We have deep expertise in the XCMG construction machinery parts industry, focusing on the R&D and production of original equipment manufacturer (OEM) standard parts. The 330106962 intake/exhaust bracket assembly can effectively improve stability, reduce pipeline damage and leakage, and lower maintenance frequency. At the same time, we provide comprehensive after-sales support, supporting OEM verification and nationwide warranty, fully meeting the stringent operational protection requirements of XCMG construction machinery.
