198-30-56132 pad Komatsu D375 bulldozer spare parts

The Komatsu D375 gasket 198-30-56132 is a “sealing and buffering core” for chassis component connections. It fits snugly against the mating surfaces of components, effectively preventing leakage of oil, mud, and dust. At the same time, it buffers the vibration and friction during component operation, protecting the mating surfaces from wear. It is specially designed for various connection parts of the chassis of Komatsu D375A-2/A-5/A-6/A-8 models, avoiding leakage and component wear caused by gasket aging and damage, ensuring normal equipment operation, and improving construction efficiency.
This product strictly adheres to Komatsu’s original standards and references the D375 series (474kW power, 72-ton operating weight) chassis component specifications. It utilizes high-strength sealing steel with a corrosion-resistant coating, offering advantages such as tight sealing, wear resistance, corrosion resistance, and easy installation. Through precision stamping and aging treatment, it achieves accurate dimensions and high flatness, closely matching the mating surfaces of original components for direct installation. This effectively reduces downtime losses, extends the lifespan of chassis components, and lowers maintenance costs. Widely used in mining, earthmoving, and infrastructure fields, it is a core consumable for chassis component maintenance.

Core technical parameters:

– Product Model: Komatsu D375 Pad, Part Number 198-30-56132
– Product Type: Sealing gaskets, chassis component connection seals, cushioning core components
– Core materials: The main body is made of high-strength sealing steel; the surface is coated with a corrosion-resistant protective coating; the sealing surface is made of high-temperature resistant sealing material.
– Material characteristics: The sealing steel has a tensile strength of ≥400MPa, a yield strength of ≥250MPa, and a hardness of ≥140HBS; the coating has strong corrosion resistance and is not easy to peel off; the sealing surface can withstand high temperatures of -40℃ to +150℃, and the sealing performance is stable, which can effectively prevent the leakage of oil and mud.
– Operating parameters: Operating temperature -40℃~120℃, sealing rating IP67, suitable for the sealing requirements of chassis components of 72-ton models, can withstand vibration and impact under complex working conditions, and has no leakage risk.
– Processing technology: precision stamping and surface coating treatment, after dimensional calibration and sealing test, conforming to GB/T 12385-2008 Engineering Machinery Sealing Gasket Manufacturing Standard.
– Core dimensions: outer diameter 80mm, inner diameter 50mm, thickness 3mm, flatness ≤0.02mm, precisely matching the mating surfaces of chassis components, ensuring gapless installation.
– Compatible models: Komatsu D375 series (D375A-2/A-5/A-6/A-8, etc.), can directly replace original parts, compatible with all connection parts of the 474kW chassis.

The Komatsu D375 gasket (198-30-56132) is the preferred consumable for D375 series chassis maintenance due to its original factory compatibility and excellent sealing and cushioning performance. It caters to various needs of individuals, businesses, and maintenance personnel. Easy to install and directly replaceable, it effectively solves problems such as gasket aging, damage, and leakage, reducing downtime, lowering costs, protecting chassis components from wear, and ensuring stable equipment operation.

Get a personalized quote now

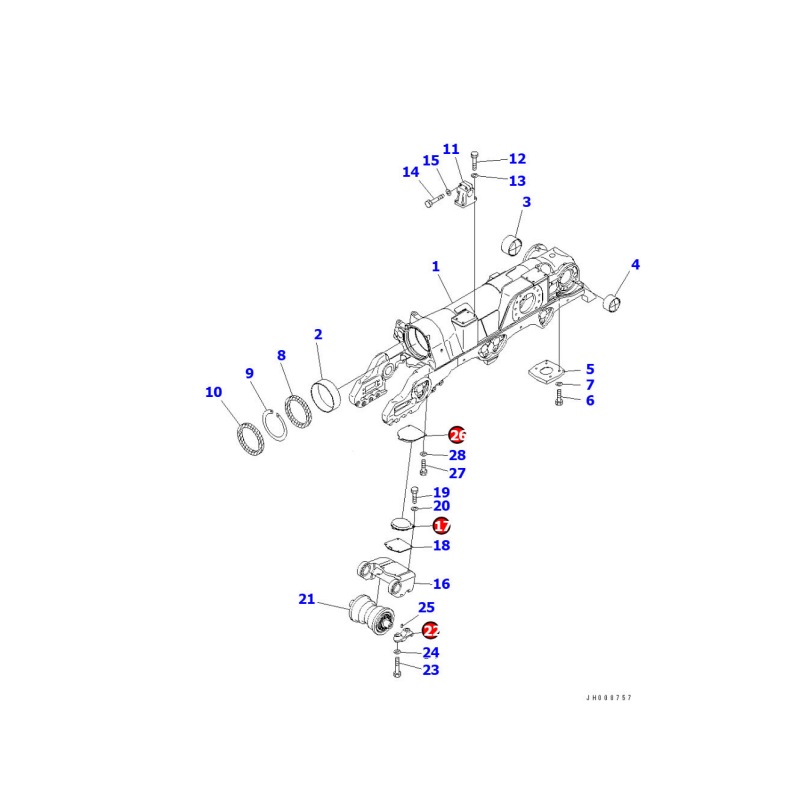

1 track frame
2 195-30-31221 bushing
3 195-50-22190 bushing
4 195-50-22210 bushing
5 195-30-61492 bracket
6 01010-81640 bolt
7 01643-31645 washer
8 195-30-31231 seal
9 195-30-31250 ring
10 195-30-31240 seal
11 195-30-25143 support
12 01010-62265 bolt
13 01643-32260 washer
14 01010-62285 bolt
15 01643-32260 washer
16 195-30-66550 bogie,first
17 198-30-56132 pad
18 195-30-66590 plate
19 01010-81230 bolt
20 01643-31232 washer
21 195-30-01412 track roller ass’y,(seefig.r2100-04a0)
21 195-30-01411 track roller ass’y,(seefig.r2100-04a0)
22 195-30-62141 cap
23 01011-62710 bolt
24 01643-32780 washer
25 04020-00616 pin
26 198-30-56132 pad
27 01010-81225 bolt
28 01643-31232 washer
