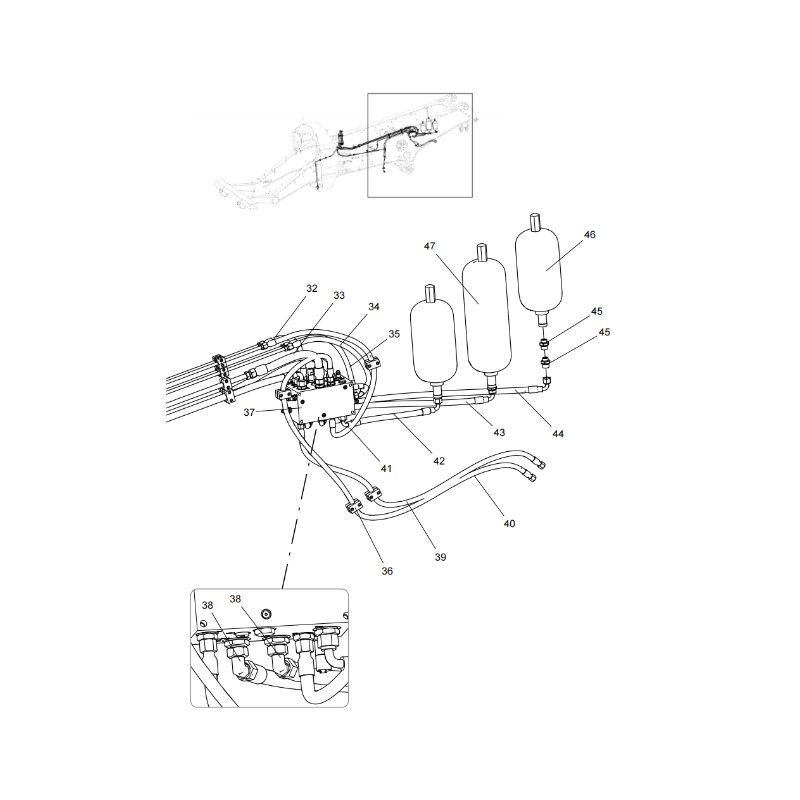

330104597 Frame Brake Piping XCMG XDE130 Electric driving dump truck spare parts

The 330104597 frame brake piping effectively solves problems such as oil leakage and pressure relief in the chassis’s hydraulic lines, chassis rust and perforation due to mud and water, body tension cracking, joint sealing oil leakage, piping misalignment, breakage due to bumps and deformation, vehicle braking lag, and piping resonance wear. It is suitable for replacing brake piping in old chassis, chassis and frame brake maintenance, original equipment manufacturer (OEM) parts for locomotive frames, chassis hydraulic line reinforcement and renovation, and vehicle brake pressure relief repair. The product is constructed with thickened, pressure-resistant seamless steel pipes and a heavy-duty anti-corrosion coating for the chassis, providing strong resistance to mud and water erosion. It features pressure resistance, oil conduction, rust and corrosion resistance, tensile and bending resistance, resistance to brake fluid corrosion, resistance to body deformation, and sealing and leak-proof properties. It is suitable for engineering machinery chassis operating under heavy loads, mud and water immersion, heavy-duty bumps, high-frequency braking throughout the vehicle, and outdoor temperature variations.

Core technical parameters:

– Product Model: 330104597
– Product Name: Frame Brake Piping
– Material specifications: Thickened seamless steel tubes for the frame, heavy-duty anti-corrosion outer wall of the chassis, resistant to mud, water and salt corrosion, and resistant to body stretching, aging and cracking.
– Processing technology: Original frame shaping and bending, standard fixing hole positions, wiring close to the frame position, and compatible with original vehicle tube clamps and hangers.
– Performance and operating condition adaptability: The frame has a rated load-bearing capacity that meets the standards, and the entire vehicle brakes quickly transmit pressure, making it suitable for heavy-duty vehicle braking conditions.
– Structural features: Original frame exclusive wiring layout, precise limit point positioning, resists body pulling and displacement, and reduces frame brake leakage failure.

This product undergoes rigorous quality control testing, including frame pressure testing, airtightness verification, mud and water corrosion resistance testing, vehicle body tensile durability testing, and original factory frame brake compatibility calibration, fully meeting original factory assembly standards. It boasts high compatibility and is ready to use immediately after installation. It completely resolves potential issues such as frame brake oil leakage, pipe corrosion, misalignment, and brake pressure loss, maintaining constant brake oil pressure across the entire vehicle, ensuring synchronized and balanced braking on both the front and rear axles, and extending the service life of the entire brake system, including the frame valve body, gaskets, and pipe supports.
