13605510 Buckle Sany SY1350C1C3KH Tracked hydraulic excavator spare parts

13605510 Buckle Sany SY1350C1C3KH Tracked hydraulic excavator spare parts

The 13605510 buckle is a custom-made core fixing and connecting component for the cab, specially designed for various engineering machinery cabs. It is used to fix and connect components such as storage boxes (including the front cover and body of the right storage box) and interior panels. It also has the functions of strong locking, buffering and shock absorption, and preventing falling off, ensuring that the components are installed stably. It is suitable for bumpy operations in mines and construction sites, and prevents the buckle from breaking, loosening, or falling off.
This product is an original equipment manufacturer (OEM) accessory, precisely matched to the cabs of Sany, XCMG, and other series of construction machinery. Utilizing precision injection molding technology, it is compatible with the original mounting slots and component structures, allowing for quick and easy installation without tools. It can withstand bumpy, high and low temperature, and dusty and oily working conditions, with a tight fit that is not easy to loosen. It complies with GB/T 1184-2008 and QB/T 4494-2013 standards and follows the EN ISO 5010:2019 safety standard.

【Core Technical Parameters】

-Product Model: 13605510
– Product Type: Clip (Original factory fit, special fixing and connecting accessories for construction machinery cab)
– Product Brand: Genuine Original Product (Compatible with various construction machinery cabs, of the same quality, and with guaranteed after-sales service)
– Compatible with: Cabs of Sany, XCMG, and other series of construction machinery; precisely fits the mounting slots for storage boxes, interior panels, and other components.
-Material: PA66 reinforced nylon (with added glass fiber reinforcement), precision injection molded, tensile strength ≥60MPa, Shore hardness D70-75, excellent toughness.
-Operating temperature range: -30°C to +80°C (Stable toughness under extreme temperatures, no brittleness, no aging, and no degradation in locking performance)
– Structural Specifications: One-piece snap-fit ​​structure, including snap head, snap body, and anti-slip texture; fits original factory snap-fit ​​slot size; snap-fit ​​depth conforms to component requirements; combines fixing and cushioning/shaking protection functions; suitable for components of various thicknesses.
– Size: Precisely fits the original factory mounting slot; the diameter and length of the clip body perfectly match the fixing requirements, ensuring a perfect match with storage boxes, interior panels, and other components. Dimensional tolerances are IT7-IT8, conforming to GB/T 1184-2008.
-Installation method: Tool-free quick snap-fit, compatible with original slots, simply press to complete installation, easy to disassemble, and securely locked in place.
– Protective properties: Waterproof, dustproof, oil-proof, wear-resistant, anti-aging, UV-resistant, colorfast, non-deformable, and will not loosen or stick after long-term use.
-Service life: ≥3 years under normal working conditions, ≥1.5 years under harsh working conditions. It has undergone 100,000 cycles of engagement and disengagement testing without breakage or deformation, demonstrating stable engagement performance.

Whether in bumpy environments, dusty mines, or extreme temperatures, this product consistently provides a stable connection, ensuring secure installation and easy disassembly of all components in the cab, thus reducing maintenance costs. Original factory compatible and traceable with a unique code, it is a high-quality genuine part for repairing and replacing cab clips in construction machinery, and for bulk stocking.

Get a personalized quote now

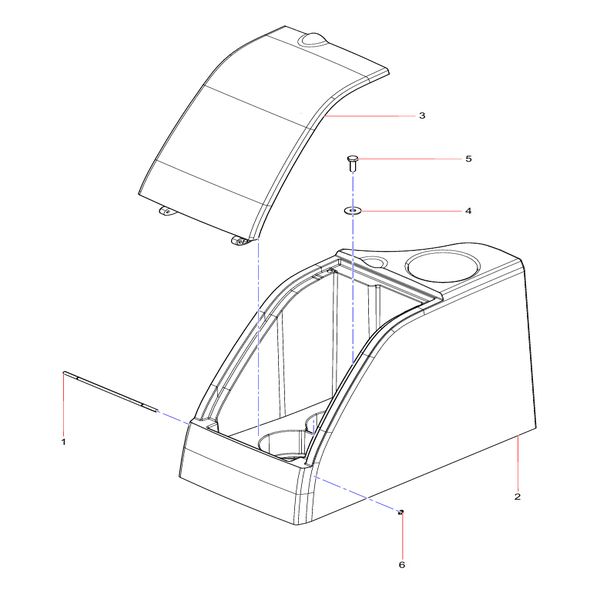

1 13122422 Right storage box rotation axis
2 13122392 Right storage box assembly
3 13122409 Right storage box front cover assembly
4 A210404000009 Washers
5 A210111000080 Bolts
6 13605510 Buckle

*For other spare parts procurement needs, please contact us!
